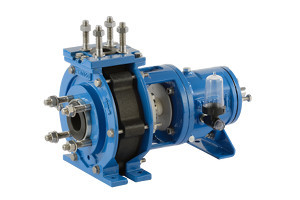

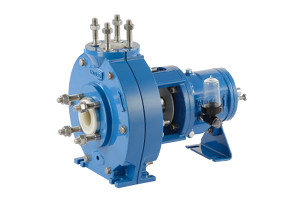

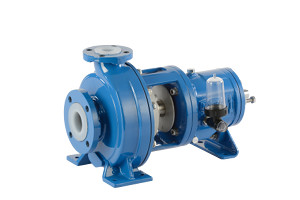

ISO Standard End-Suction Centrifugal Pump
(NJRP – GFPP | PP – NJK – PVDF | NJL – PFA Lined)
PRODUCT OVERVIEW
NJRP Series pumps are injection moulded, horizontal, back pull-out, volute casing type, single stage, center line discharge,end-suction centrifugal pumps. Cast iron frames with the injection moulded wetted parts are designed to withstand high flange loads and pressures.
TECHNICAL DATA
| Operating Frequency | 50 Hz | 60 Hz |
| Capacity [Q] up to | 210 m3 /hr (925 US gpm) | 1100 US gpm (250 m3 /hr |
| Head [H] up to | 100 m (328 ft) | 400 ft (122 m) |
| Motor Power [P] up to | 55 kW (75 hp) | 120 hp (90 kW) |
| Viscosity up to | 150 mPas (cP) | |
| Suction Lift | 8 m (26 ft) with priming chamber* | |
| Maximum Working Pressure | 16 bar (232 psi) | |
| Maximum Specific Gravity [SG] | 1.8 - 3 | |
| Minimum Continuous Flow [MCF] | 2.5 m3 /hr (11 US gpm) | |
| Maximum Temperature | GFRPP: 90°C (194°F) ,PP-H: 82°C (180°F) | |
| Suction & Delivery Connection | ANSI B16.5 - Class 150,ISO 2084, DIN 2501, BS4504 - PN16* | |
| Shaft Seal | Single (TB/RA) & Double (DROTT) Mechanical Seals | |
| Bearings | Rolling Element Bearings | |
| Lubrication | Oil | |
| Motor Compatibility | IS 1231, IEC 72-1, NEMA* |
*Available On Request
