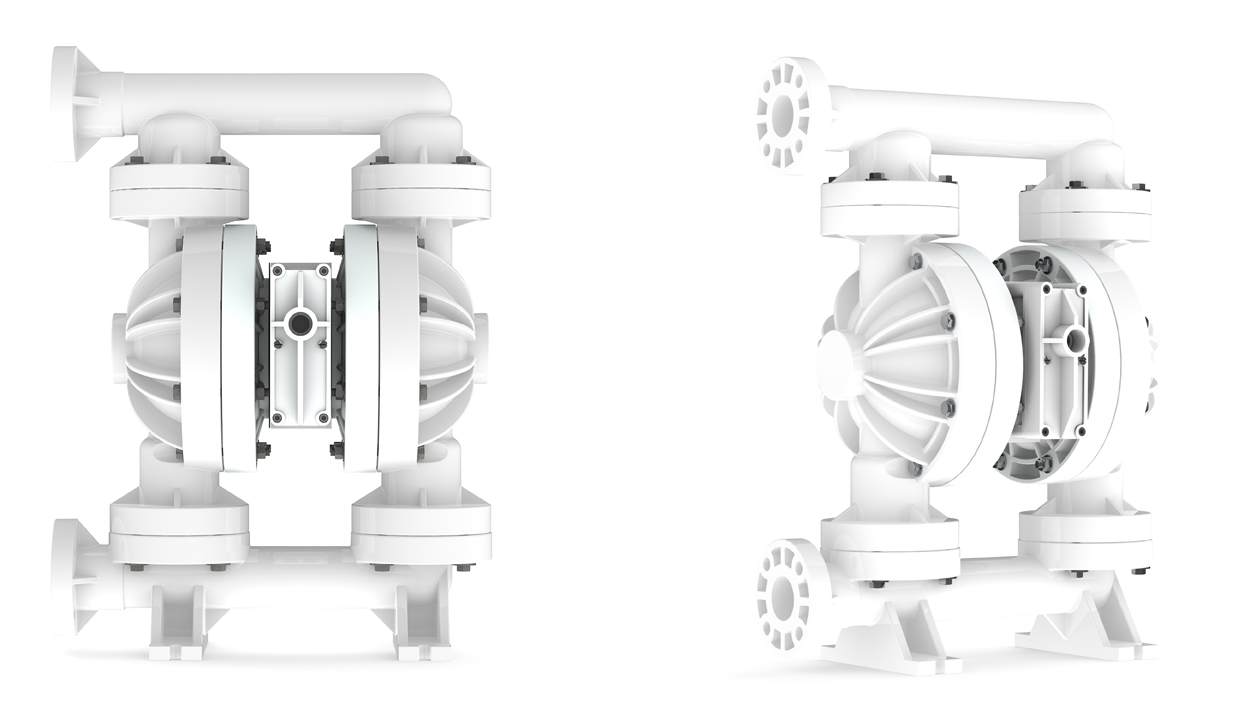

1½ INCH POLYPROPYLENE BOLTED

AOD 400 PF PP

TYPICAL INDUSTRIES

Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM’S

AIR VALVE ASSEMBLY OPTIONS

SPECIFICATIONS

Suction & Discharge Size	1-1/2″ X 1-1/2″
Standard Porting Location	End
Connection Types	ANSI
Air Inlet & Air Exhaust Size	13mm(1/2″) x 19mm (3/4″)
Maximum Flow Rate	458lpm(121gpm)
Maximum Air Supply Pressure	120 psi (8.3 bar)
Displacement Per Stroke	1.1l (0.28 gal)
Maximum Particle Size	6.4mm( 1/4 “))
Suction Dry	5.4m(17.6′)
Suction Wet	9.0m(29.5′)

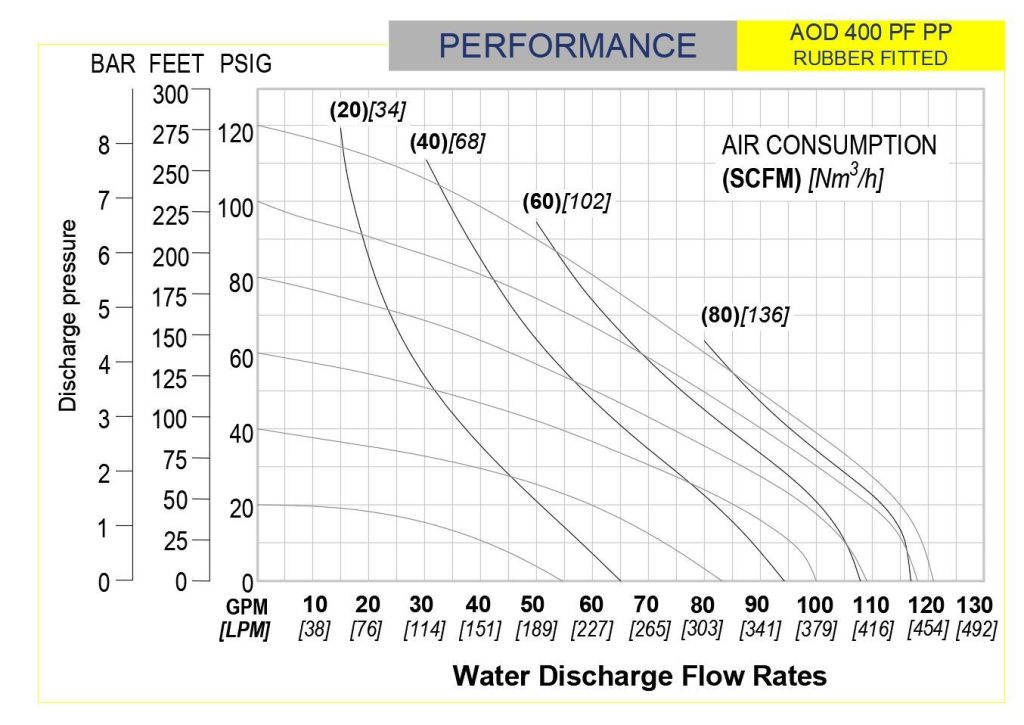

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

SPECIFICATIONS

Suction & Discharge Size	1-1/2″ X 1-1/2″
Standard Porting Location	End
Connection Types	ANSI
Air Inlet & Air Exhaust Size	13mm(1/2″) x 19mm (3/4″)
Maximum Flow Rate	458lpm(121gpm)
Maximum Air Supply Pressure	120 psi (8.3 bar)
Displacement Per Stroke	1.1l (0.28 gal)
Maximum Particle Size	6.4mm( 1/4 “))
Suction Dry	5.4m(17.6′)
Suction Wet	9.0m(29.5′)

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

CONSTRUCTION

Wetted Materials	Polypropylene, PVDF
Diaphragm Materials	Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve	Polypropylene
Ball Materials	PTFE. Neoprene, 316SS.
Seat Materials	Polypropylene
O-ring Materials	Neoprene, PTFE, EPDM

Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™

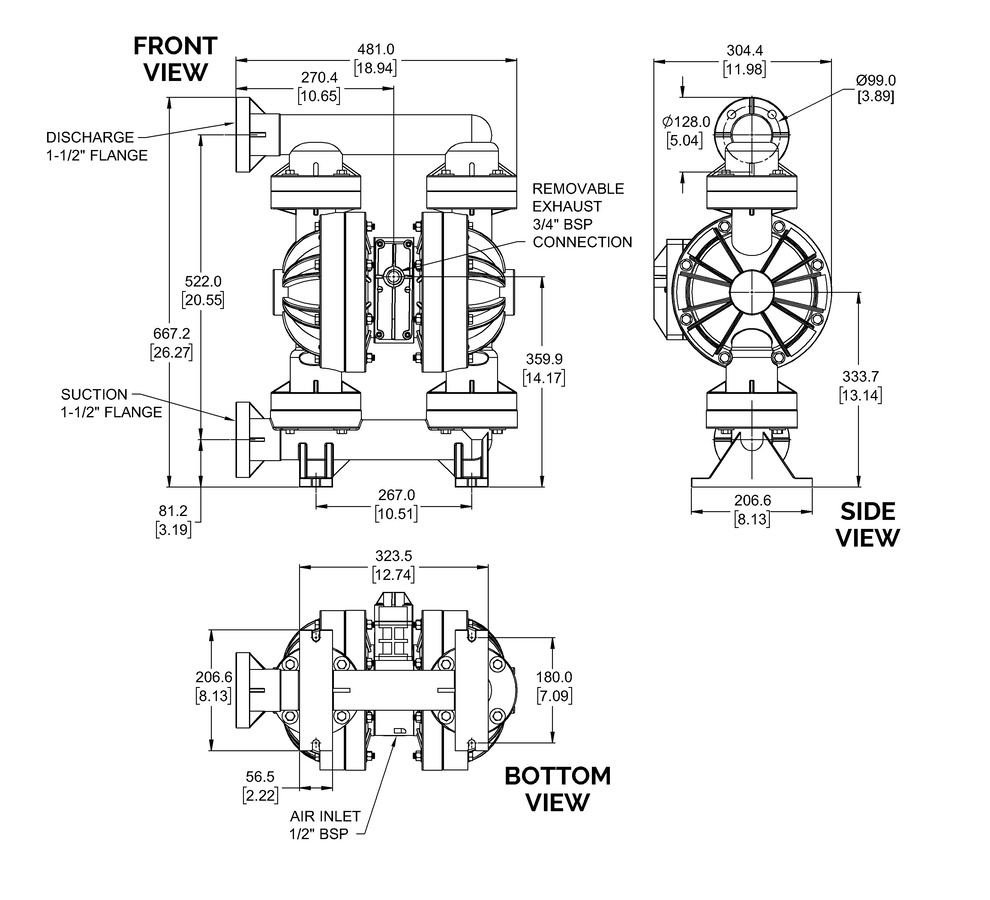

SHIPPING

Maximum Height	730mm(28.74″)
Maximum Width	380mm(14.96″)
Maximum Depth	530mm(20.87″)
Weight: PVDF	31 Kg
Weight: Polypropylene	24 Kg

CONSTRUCTION

Wetted Materials	Polypropylene, PVDF
Diaphragm Materials	Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve	Polypropylene
Ball Materials	PTFE. Neoprene, 316SS.
Seat Materials	Polypropylene
O-ring Materials	Neoprene, PTFE, EPDM
