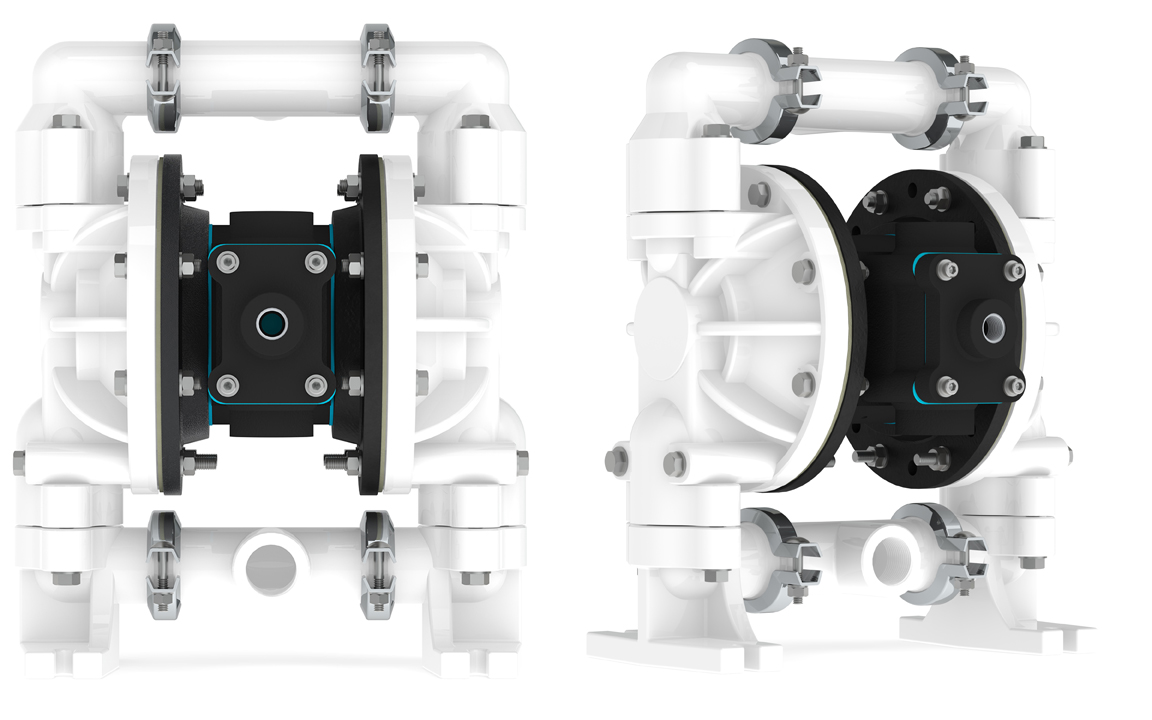

1 INCH POLYPROPYLENE BOLTED

AOD 300 NSV PP

TYPICAL INDUSTRIES

Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM’S

AIR VALVE ASSEMBLY OPTIONS

SPECIFICATIONS

Suction & Discharge Size	1″ X 1″
Standard Porting Location	Centre
Connection Types	ANSI
Air Inlet & Air Exhaust Size	9.5mm(3/8″) X 13mm 1/2″
Maximum Flow Rate	135lpm(36gpm)
Maximum Air Supply Pressure	100 psi (6.9 bar)
Displacement Per Stroke	0.32l (0.086 gal)
Maximum Particle Size	3.17mm(1/8″)
Suction Dry	3.05m(10′)
Suction Wet	4.89m(16′)

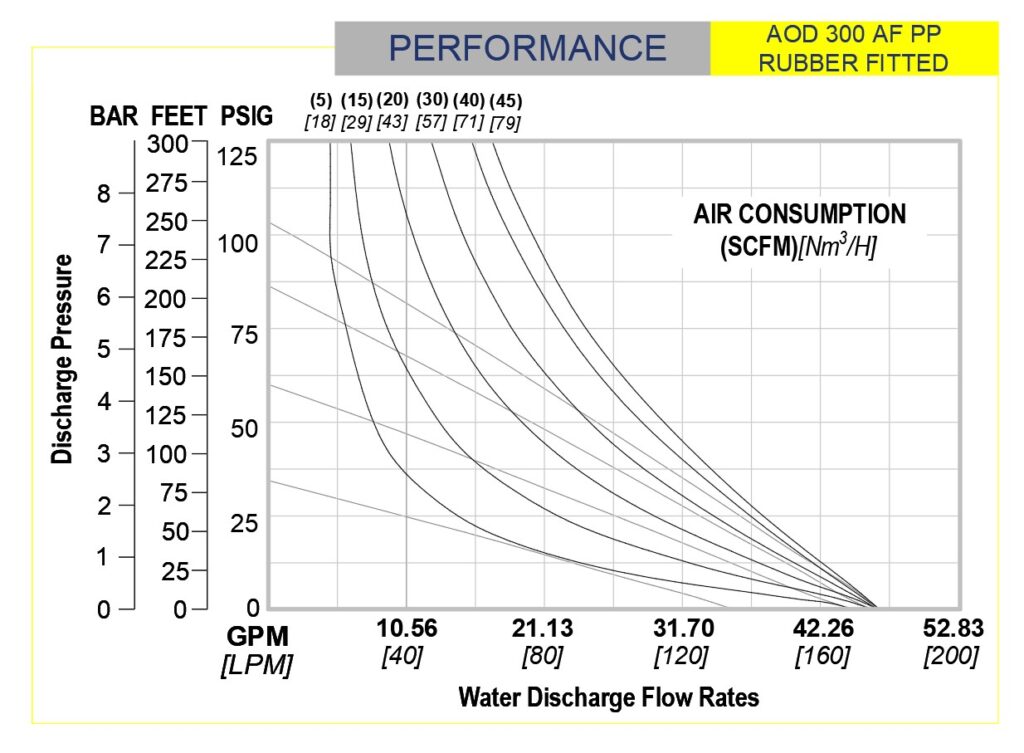

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

SPECIFICATIONS

Suction & Discharge Size	1″ X 1″
Standard Porting Location	Centre
Connection Types	ANSI
Air Inlet & Air Exhaust Size	9.5mm(3/8″) X 13mm 1/2″
Maximum Flow Rate	135lpm(36gpm)
Maximum Air Supply Pressure	100 psi (6.9 bar)
Displacement Per Stroke	0.32l (0.086 gal)
Maximum Particle Size	3.17mm(1/8″)
Suction Dry	3.05m(10′)
Suction Wet	4.89m(16′)

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

CONSTRUCTION

Wetted Materials	Polypropylene, PVDF
Diaphragm Materials	Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve	Glass Filled Polypropylene
Ball Materials	PTFE. Neoprene, 316SS.
Seat Materials	Polypropylene
O-ring Materials	Neoprene, PTFE, EPDM

Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™

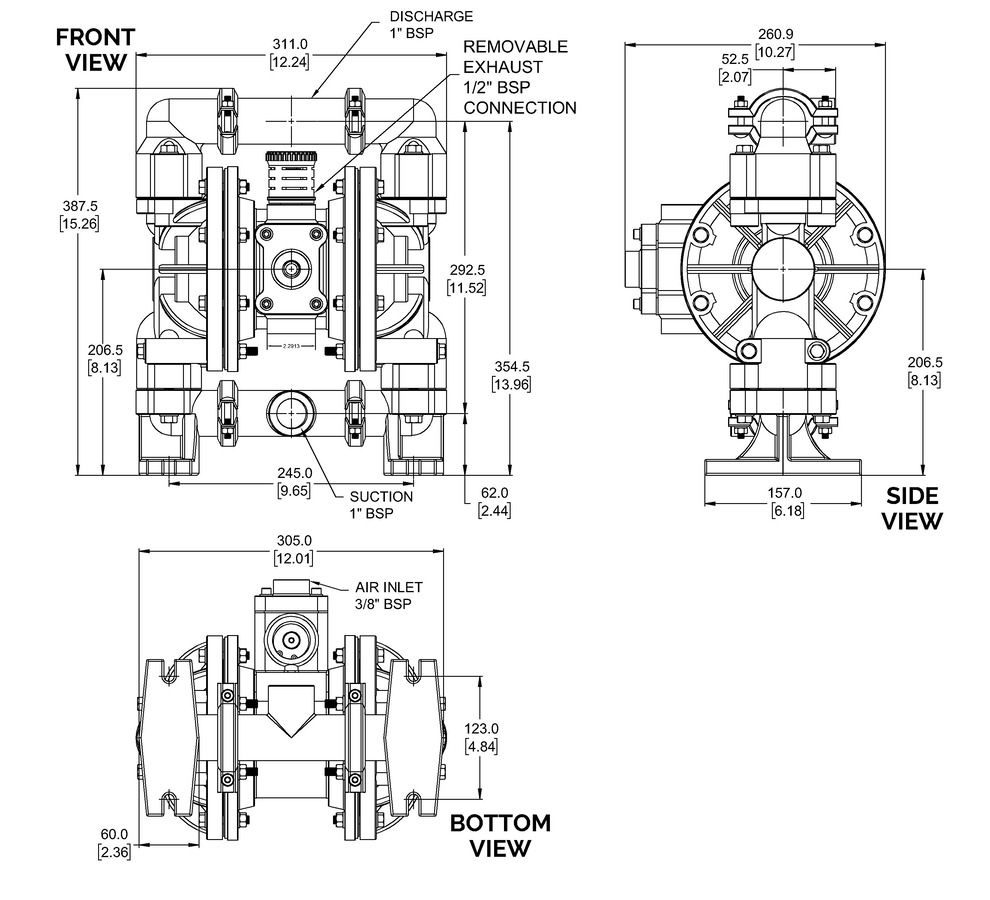

SHIPPING

Maximum Height	440mm(17.32″)
Maximum Width	310mm(12.2″)
Maximum Depth	370mm(14.57″)
Weight: Polypropylene	13 Kg
Weight: PVDF	16 Kg

CONSTRUCTION

Wetted Materials	Polypropylene, PVDF
Diaphragm Materials	Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve	Glass Filled Polypropylene
Ball Materials	PTFE. Neoprene, 316SS.
Seat Materials	Polypropylene
O-ring Materials	Neoprene, PTFE, EPDM
