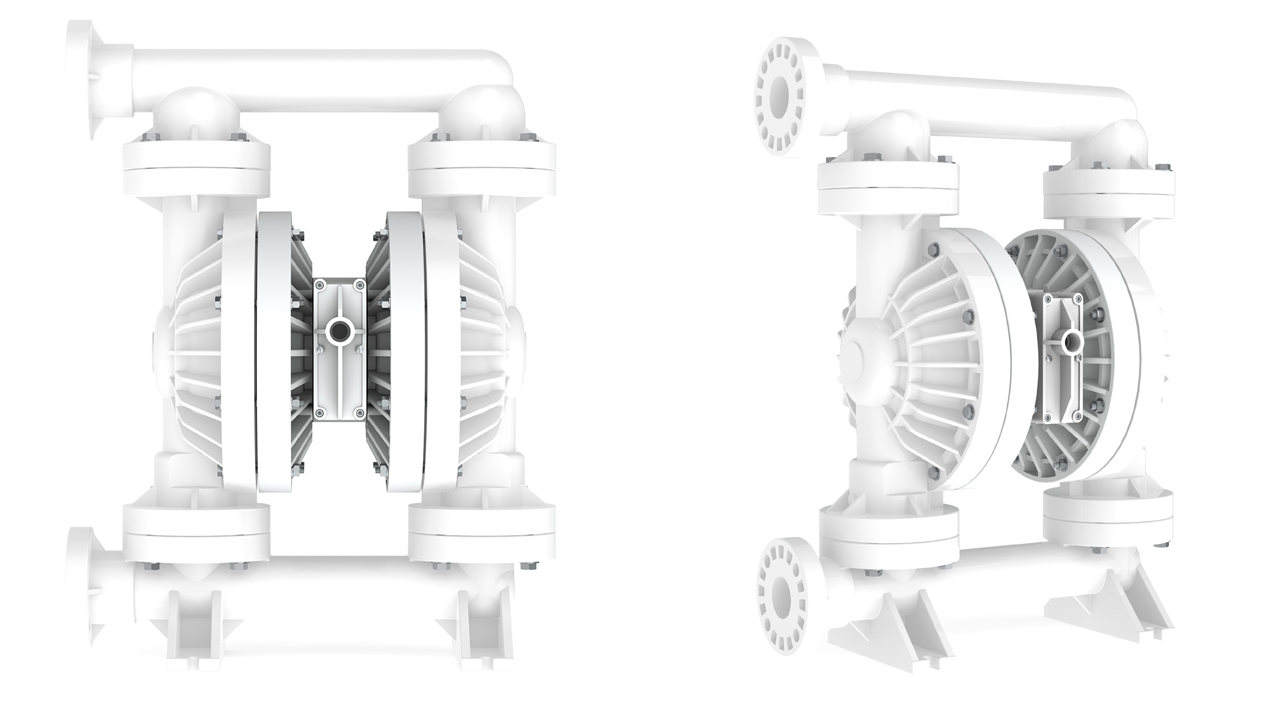

2 INCH PVDF BOLTED

AOD 500 PF PVDF

TYPICAL INDUSTRIES

Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM’S

AIR VALVE ASSEMBLY OPTIONS

SPECIFICATIONS

Suction & Discharge Size	2″ X 2″
Standard Porting Location	End
Connection Types	ANSI
Air Inlet & Air Exhaust Size	13mm(1/2″) x 19mm (3/4″)
Maximum Flow Rate	709lpm(187gpm)
Maximum Air Supply Pressure	120 psi (8.3 bar)
Displacement Per Stroke	2.5l (0.66 gal)
Maximum Particle Size	6.4mm( 1/4 “))
Suction Dry	5.9m(19.3′)
Suction Wet	8.3m(27.2′)

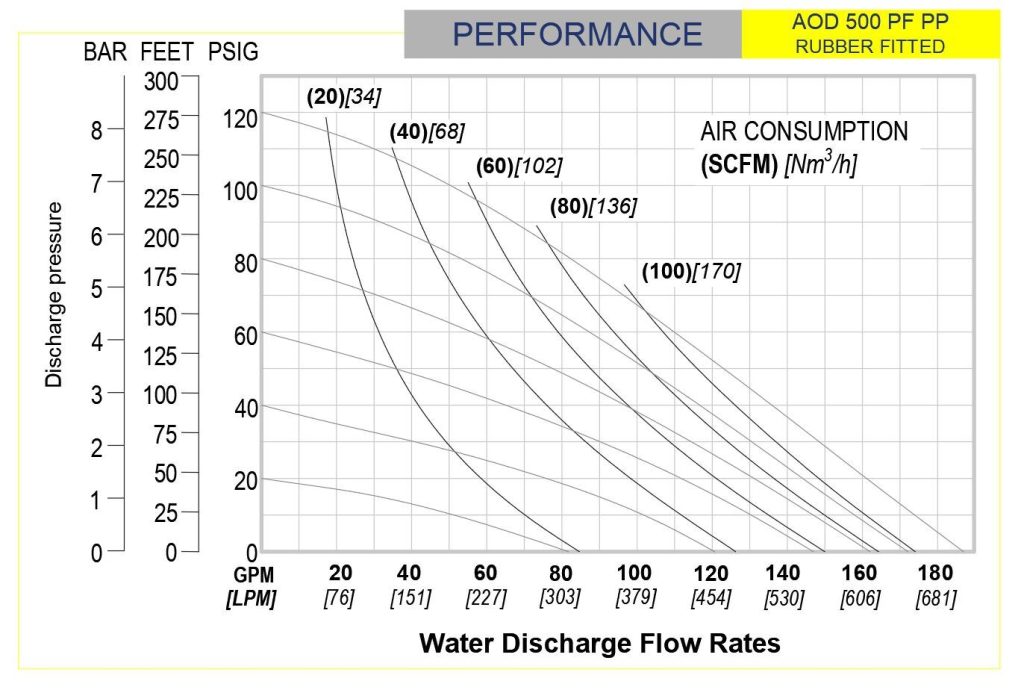

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

SPECIFICATIONS

Suction & Discharge Size	2″ X 2″
Standard Porting Location	End
Connection Types	ANSI
Air Inlet & Air Exhaust Size	13mm(1/2″) x 19mm (3/4″)
Maximum Flow Rate	709lpm(187gpm)
Maximum Air Supply Pressure	120 psi (8.3 bar)
Displacement Per Stroke	2.5l (0.66 gal)
Maximum Particle Size	6.4mm( 1/4 “))
Suction Dry	5.9m(19.3′)
Suction Wet	8.3m(27.2′)

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

CONSTRUCTION

Wetted Materials	Polypropylene, PVDF
Diaphragm Materials	Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve	Polypropylene
Ball Materials	PTFE. Neoprene, 316SS.
Seat Materials	Polypropylene
O-ring Materials	Neoprene, PTFE, EPDM

Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™

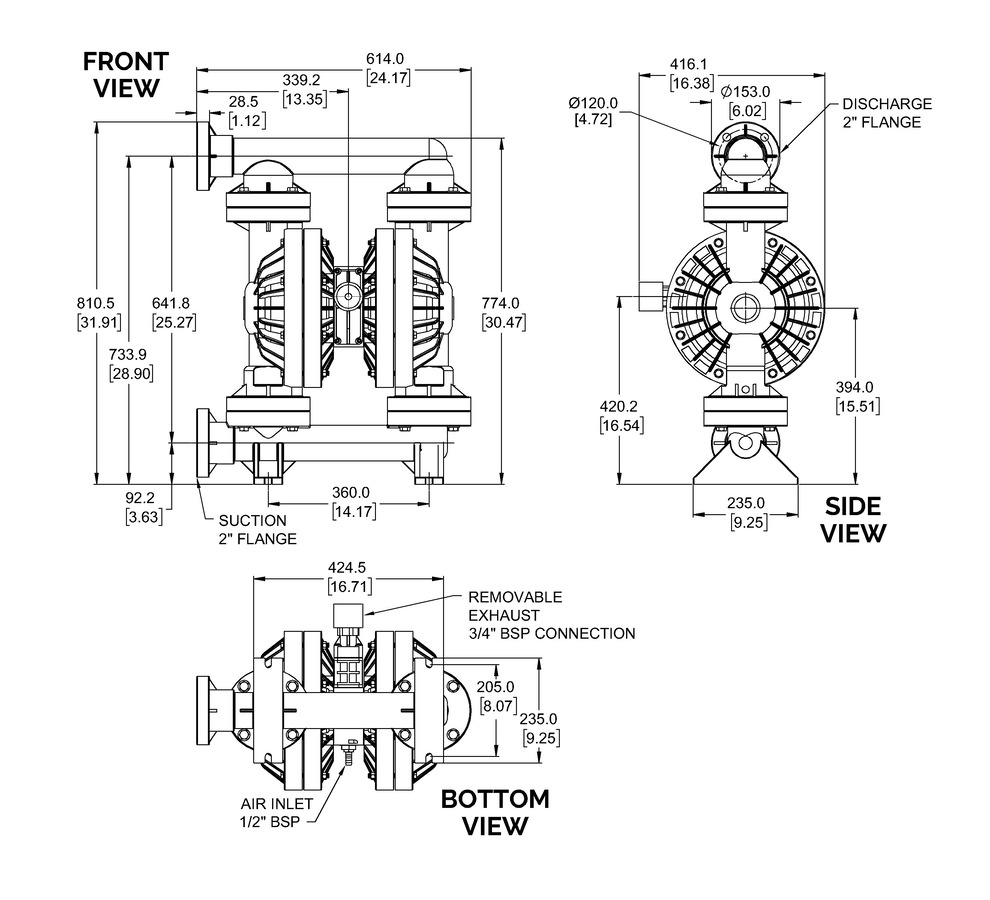

SHIPPING

Maximum Height	860mm(33.86″)
Maximum Width	420mm(16.53″)
Maximum Depth	660mm(25.98″)
Weight: PVDF	52 Kg
Weight: Polypropylene	38 Kg

CONSTRUCTION

Wetted Materials	Polypropylene, PVDF
Diaphragm Materials	Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve	Polypropylene
Ball Materials	PTFE. Neoprene, 316SS.
Seat Materials	Polypropylene
O-ring Materials	Neoprene, PTFE, EPDM
