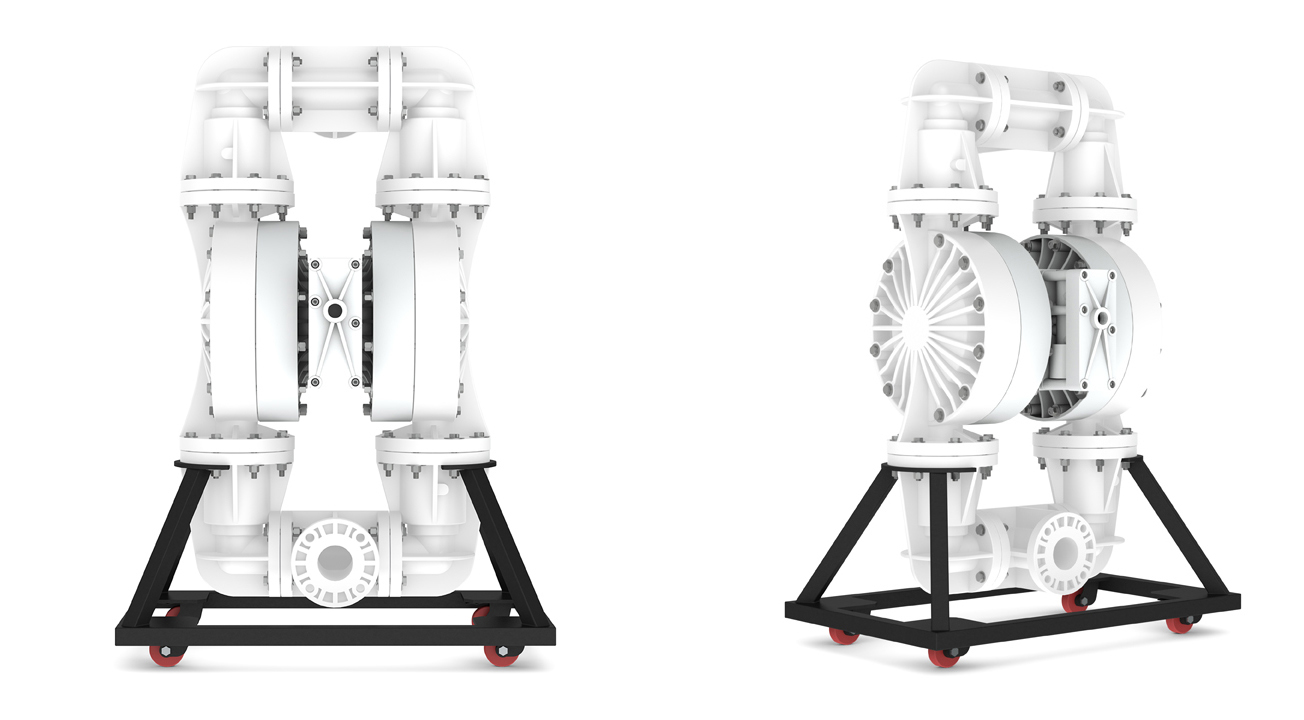

3 INCH POLYPROPYLENE BOLTED

AOD 800 PF PP

TYPICAL INDUSTRIES

Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM’S

AIR VALVE ASSEMBLY OPTIONS

SPECIFICATIONS

Suction & Discharge Size	3″ X 3″
Standard Porting Location	Centre
Connection Types	ANSI
Air Inlet & Air Exhaust Size	13mm(1/2″) X 25mm (1″)
Maximum Flow Rate	1024lpm(271gpm)
Maximum Air Supply Pressure	120 psi (8.3 bar)
Displacement Per Stroke	5.4l (1.42 gal)
Maximum Particle Size	12.7mm(1/2″)
Suction Dry	5.3m(17.5′)
Suction Wet	8.6m(28.4′)

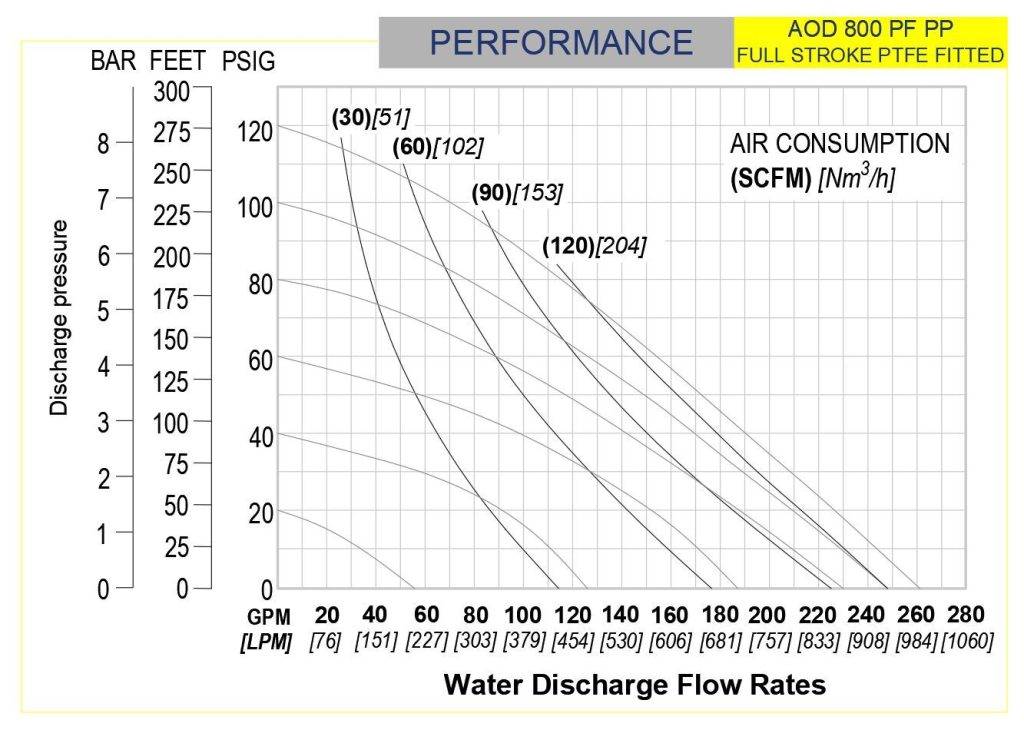

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

SPECIFICATIONS

Suction & Discharge Size	3″ X 3″
Standard Porting Location	Centre
Connection Types	ANSI
Air Inlet & Air Exhaust Size	13mm(1/2″) X 25mm (1″)
Maximum Flow Rate	1024lpm(271gpm)
Maximum Air Supply Pressure	120 psi (8.3 bar)
Displacement Per Stroke	5.4l (1.42 gal)
Maximum Particle Size	12.7mm(1/2″)
Suction Dry	5.3m(17.5′)
Suction Wet	8.6m(28.4′)

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

CONSTRUCTION

Wetted Materials	Polypropylene
Diaphragm Materials	Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve	Polypropylene
Ball Materials	PTFE. Neoprene, 316SS.
Seat Materials	Polypropylene
O-ring Materials	Neoprene, PTFE, EPDM

Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™

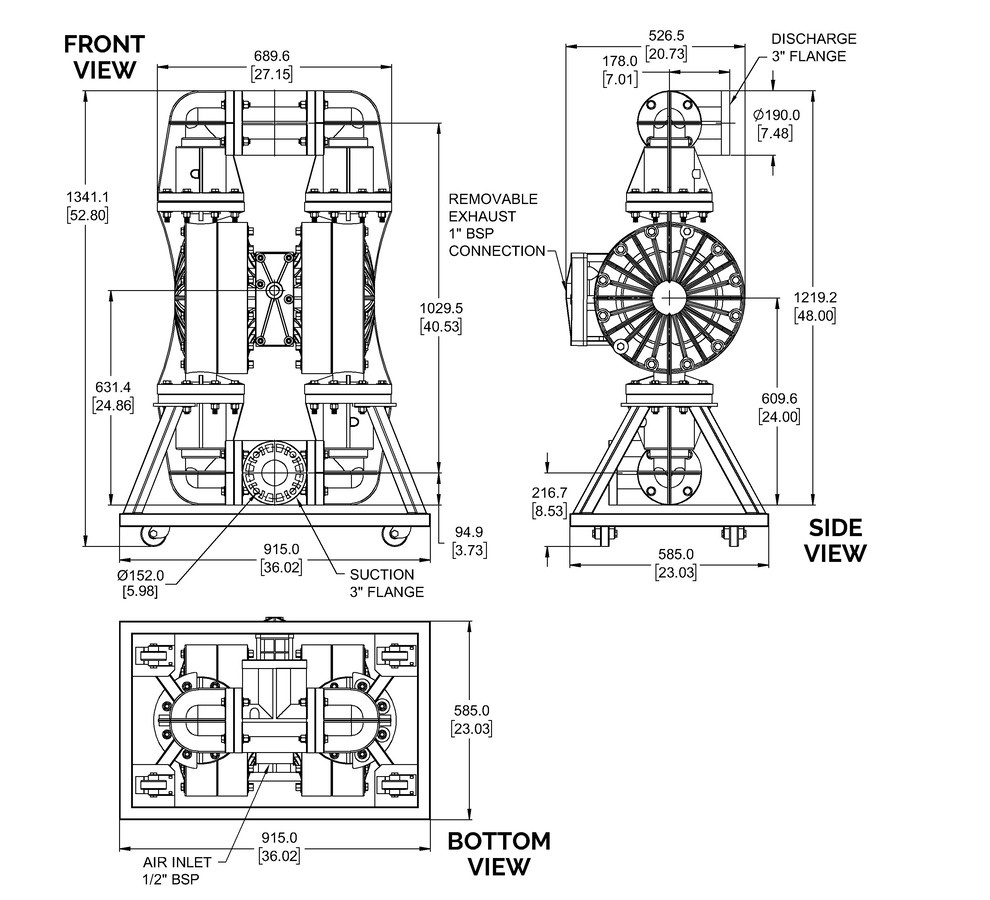

SHIPPING

Maximum Height	1510mm(59.45″)
Maximum Width	1030mm(40.55″)
Maximum Depth	670mm(26.38″)
Weight: Polypropylene	162 Kg

CONSTRUCTION

Wetted Materials	Polypropylene
Diaphragm Materials	Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve	Polypropylene
Ball Materials	PTFE. Neoprene, 316SS.
Seat Materials	Polypropylene
O-ring Materials	Neoprene, PTFE, EPDM
