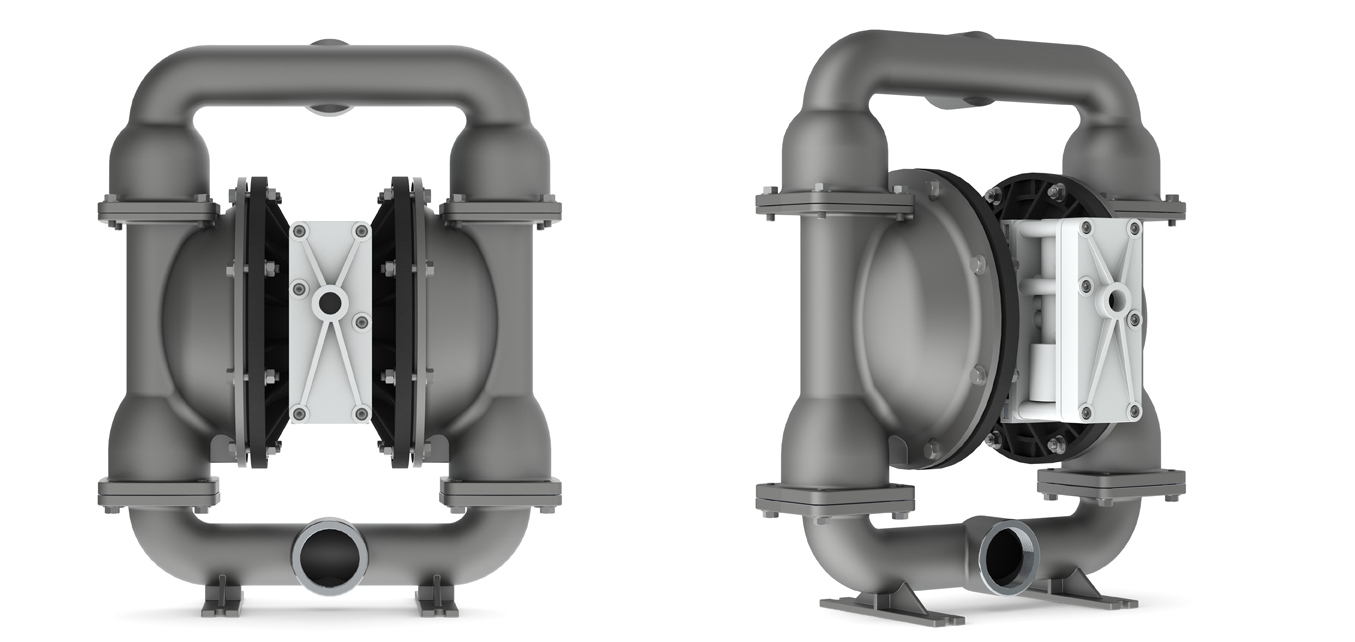

AOD 800 PF SS

TYPICAL INDUSTRIES
Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM’S
AIR VALVE ASSEMBLY OPTIONS
AIR VALVE ASSEMBLY OPTIONS
SPECIFICATIONS
Suction & Discharge Size | 3″ X 3″ |
Standard Porting Location | Centre |
Connection Types | BSP / NPT |
Air Inlet & Air Exhaust Size | 13mm(1/2″) X 25mm (1″) |
Maximum Flow Rate | 1026lpm(271gpm) |
Maximum Air Supply Pressure | 120 psi (8.3 bar) |
Displacement Per Stroke | 5.0 l (1.32 gal) |
Maximum Particle Size | 12.7mm(1/2″) |
Suction Dry | 6.0m(19.7′) |
Suction Wet | 8.6m(28.4′) |

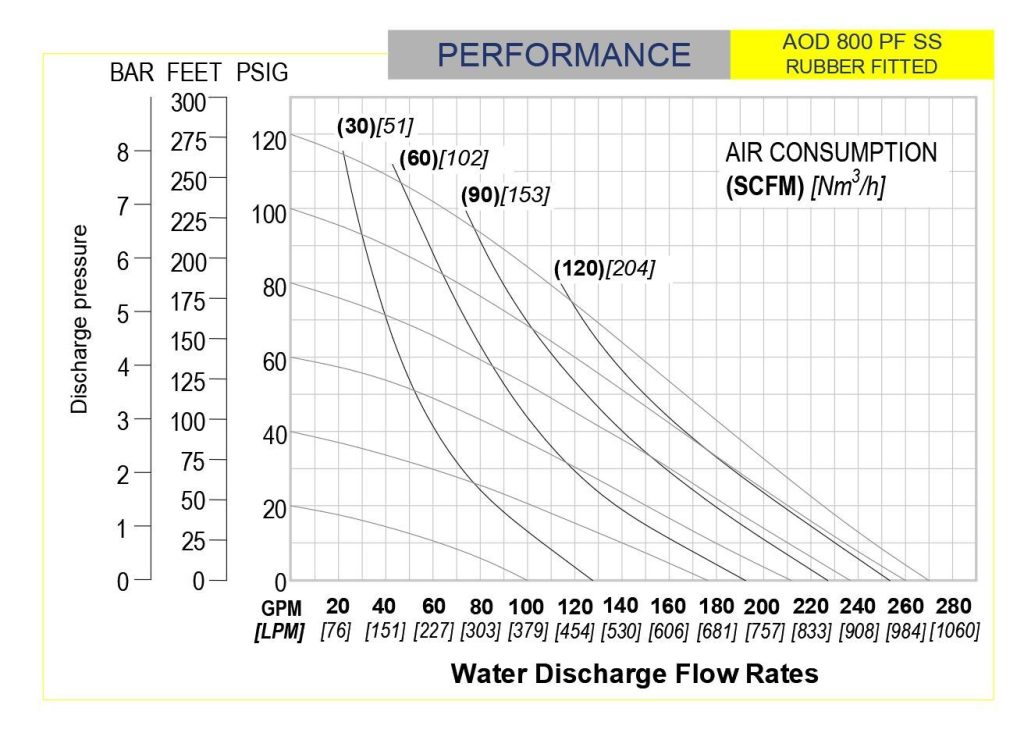

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.
SPECIFICATIONS
Suction & Discharge Size | 3″ X 3″ |
Standard Porting Location | Centre |
Connection Types | BSP / NPT |
Air Inlet & Air Exhaust Size | 13mm(1/2″) X 25mm (1″) |
Maximum Flow Rate | 1026lpm(271gpm) |
Maximum Air Supply Pressure | 120 psi (8.3 bar) |
Displacement Per Stroke | 5.0 l (1.32 gal) |
Maximum Particle Size | 12.7mm(1/2″) |
Suction Dry | 6.0m(19.7′) |
Suction Wet | 8.6m(28.4′) |
PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.
CONSTRUCTION
Wetted Materials | Stainless Steel SS316 |
Diaphragm Materials | Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane. |
Air Valve | Polypropylene |
Ball Materials | PTFE. Neoprene, 316SS. |
Seat Materials | Polypropylene |
O-ring Materials | Neoprene, PTFE, EPDM |
Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™
SHIPPING
Maximum Height | 770mm(30.31″) |
Maximum Width | 830mm(32.68″) |
Maximum Depth | 1360mm(53.54″) |
Weight: Stainless Steel 316 | 125 kg |
CONSTRUCTION
Wetted Materials | Stainless Steel SS316 |
Diaphragm Materials | Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane. |
Air Valve | Polypropylene |
Ball Materials | PTFE. Neoprene, 316SS. |
Seat Materials | Polypropylene |
O-ring Materials | Neoprene, PTFE, EPDM |
Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™
SHIPPING
Maximum Height | 770mm(30.31″) |
Maximum Width | 830mm(32.68″) |
Maximum Depth | 1360mm(53.54″) |
Weight: Stainless Steel 316 | 125 kg |

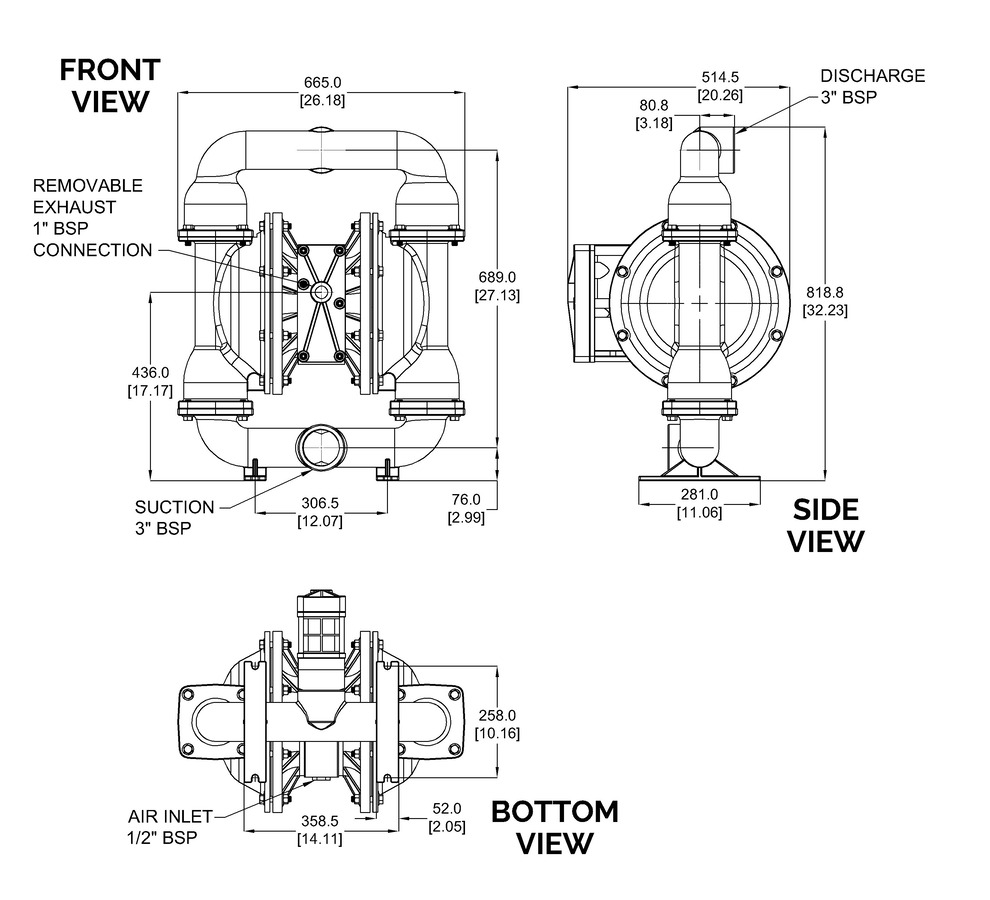

DIMENSIONS
