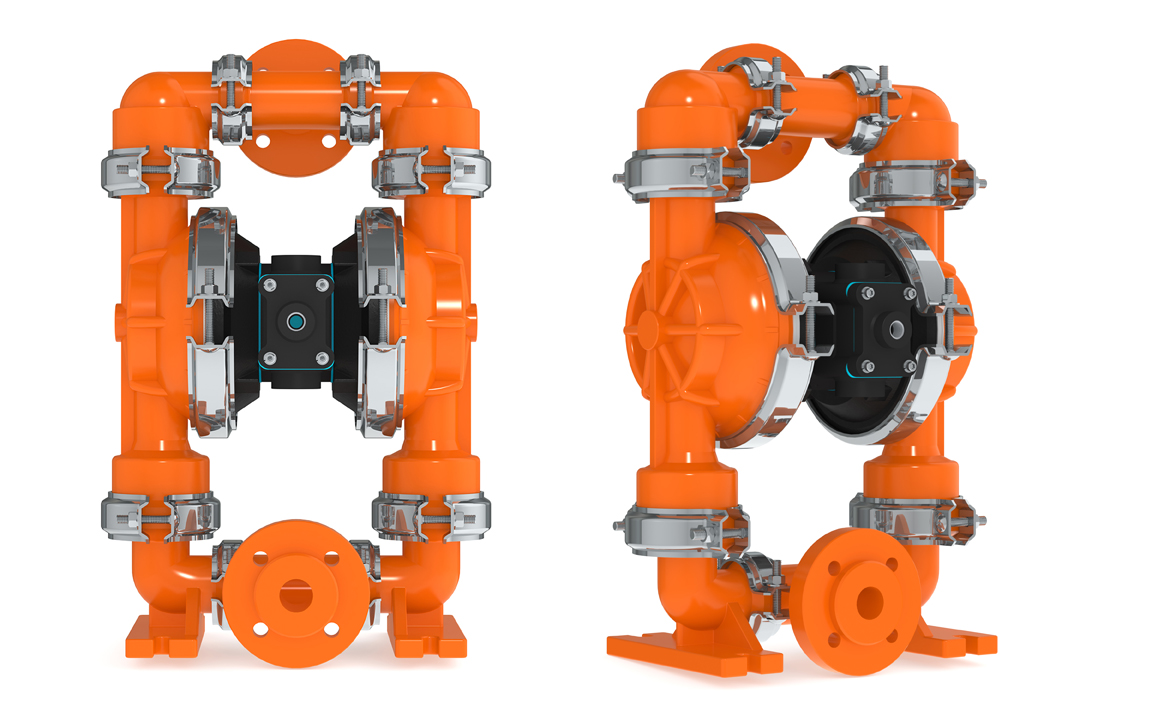

1½ INCH POLYPROPYLENE CLAMPED

AOD 25 NSV PP

TYPICAL INDUSTRIES

Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM’S

AIR VALVE ASSEMBLY OPTIONS

SPECIFICATIONS

Suction & Discharge Size	1-1/2″ X 1-1/2″
Standard Porting Location	Centre
Connection Types	ANSI
Air Inlet & Air Exhaust Size	9.5mm(3/8″) X 13mm (1/2″)
Maximum Flow Rate	379lpm(100gpm)
Maximum Air Supply Pressure	100 psi (6.9 bar)
Displacement Per Stroke	1.0l (0.26 gal)
Maximum Particle Size	4.8mm(3/16″)
Suction Dry	5.9m(19.5′)
Suction Wet	8.3m(27.2′)

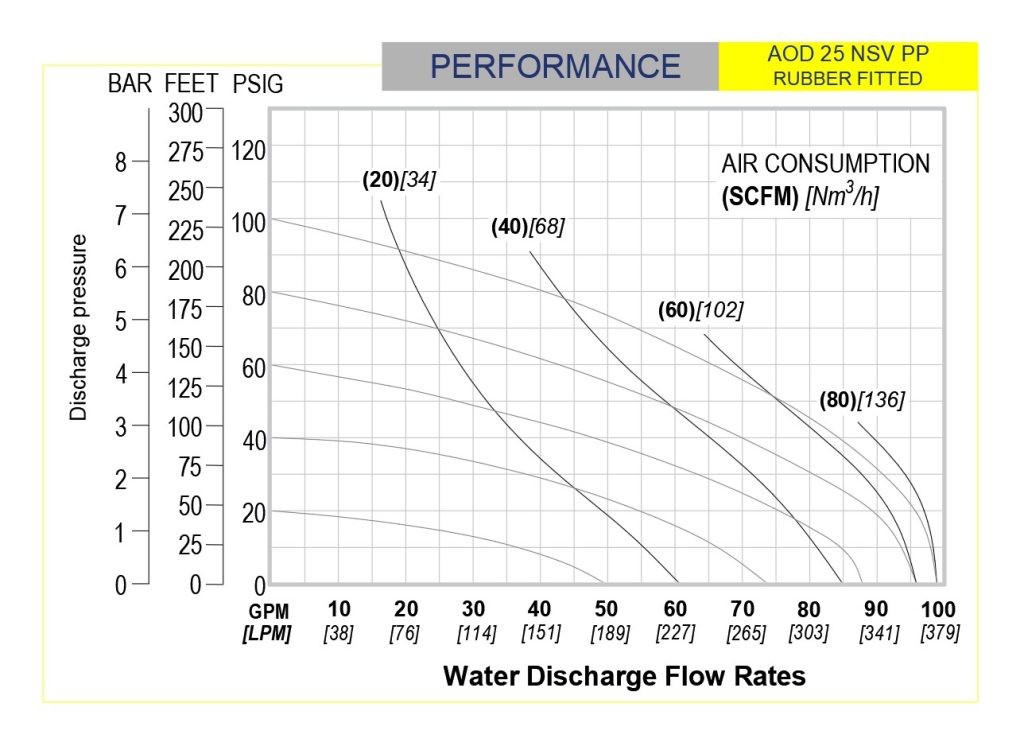

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

SPECIFICATIONS

Suction & Discharge Size	1-1/2″ X 1-1/2″
Standard Porting Location	Centre
Connection Types	ANSI
Air Inlet & Air Exhaust Size	9.5mm(3/8″) X 13mm (1/2″)
Maximum Flow Rate	379lpm(100gpm)
Maximum Air Supply Pressure	100 psi (6.9 bar)
Displacement Per Stroke	1.0l (0.26 gal)
Maximum Particle Size	4.8mm(3/16″)
Suction Dry	5.9m(19.5′)
Suction Wet	8.3m(27.2′)

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

CONSTRUCTION

Wetted Materials	Polypropylene
Diaphragm Materials	Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve	Glass Filled Polypropylene
Ball Materials	PTFE. Neoprene, 316SS.
Seat Materials	Polypropylene
O-ring Materials	Neoprene, PTFE, EPDM

Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™

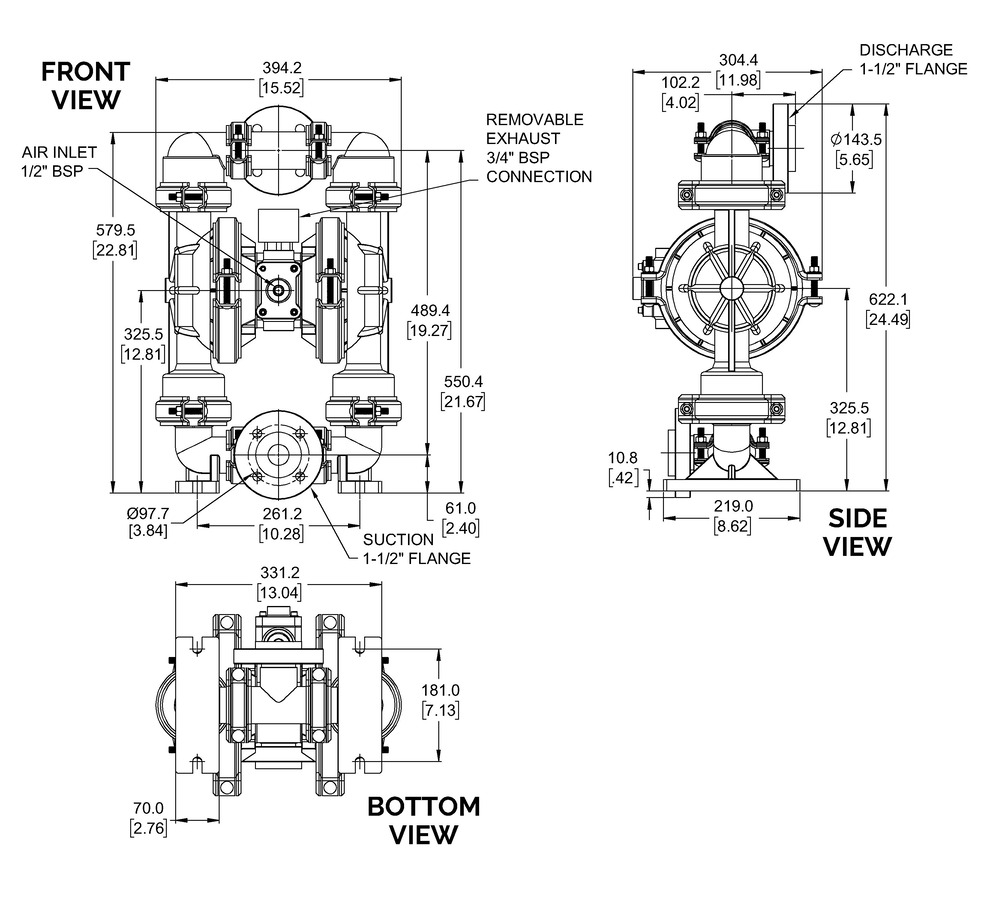

SHIPPING

Maximum Height	680mm(26.77″)
Maximum Width	390mm(15.35″)
Maximum Depth	450mm(17.72″)
Weight: Polypropylene	24 Kg

CONSTRUCTION

Wetted Materials	Polypropylene
Diaphragm Materials	Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve	Glass Filled Polypropylene
Ball Materials	PTFE. Neoprene, 316SS.
Seat Materials	Polypropylene
O-ring Materials	Neoprene, PTFE, EPDM
