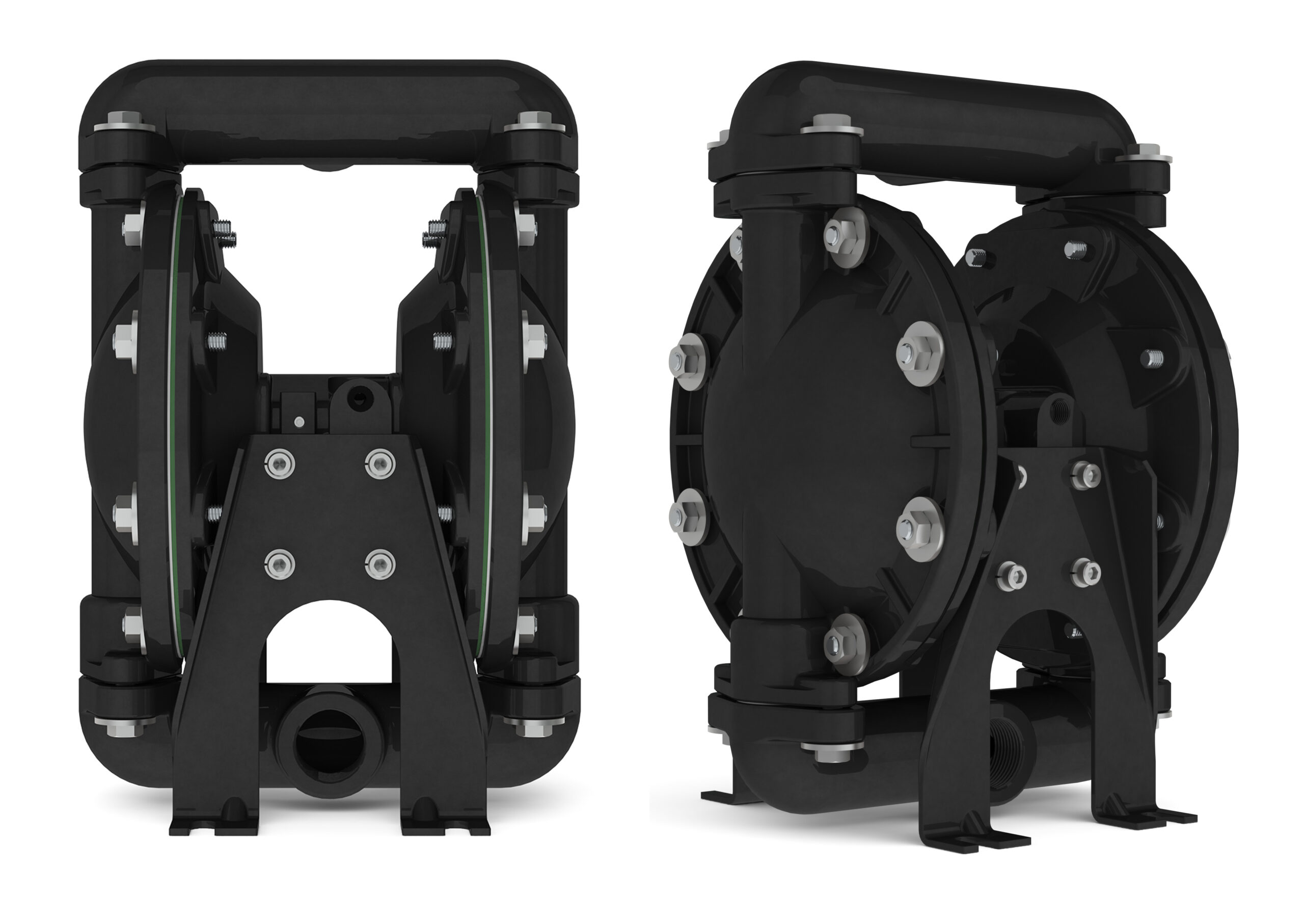

1 INCH ALUMINIUM BOLTED

AOD 300 AF AL

TYPICAL INDUSTRIES

Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM’S

AIR VALVE ASSEMBLY OPTIONS

SPECIFICATIONS

Suction & Discharge Size	1″ X 1″
Standard Porting Location	Centre
Connection Types	BSP / NPT
Air Inlet & Air Exhaust Size	6mm( 1/4 “) X 9.5mm (3/8”)
Maximum Flow Rate	133lpm(35gpm)
Maximum Air Supply Pressure	120 psi (8.3 bar)
Displacement Per Stroke	0.60l (0.16 gal)
Maximum Particle Size	3.2mm(1/8″)
Suction Dry	6.1m(20′)

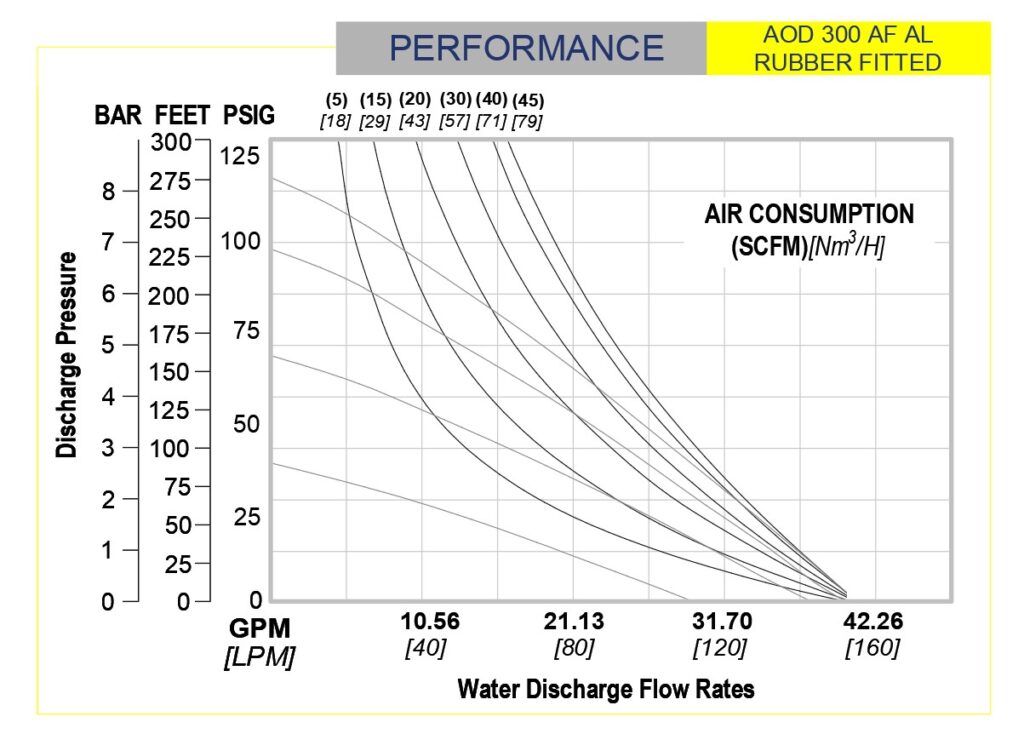

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

SPECIFICATIONS

Suction & Discharge Size	1″ X 1″
Standard Porting Location	Centre
Connection Types	BSP / NPT
Air Inlet & Air Exhaust Size	6mm( 1/4 “) X 9.5mm (3/8”)
Maximum Flow Rate	133lpm(35gpm)
Maximum Air Supply Pressure	120 psi (8.3 bar)
Displacement Per Stroke	0.60l (0.16 gal)
Maximum Particle Size	3.2mm(1/8″)
Suction Dry	6.1m(20′)

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

CONSTRUCTION

Wetted Materials	Aluminum
Diaphragm Materials	Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve	Aluminum
Ball Materials	PTFE. Neoprene, 316SS.
Seat Materials	Polypropylene
O-ring Materials	Neoprene, PTFE, EPDM

Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™

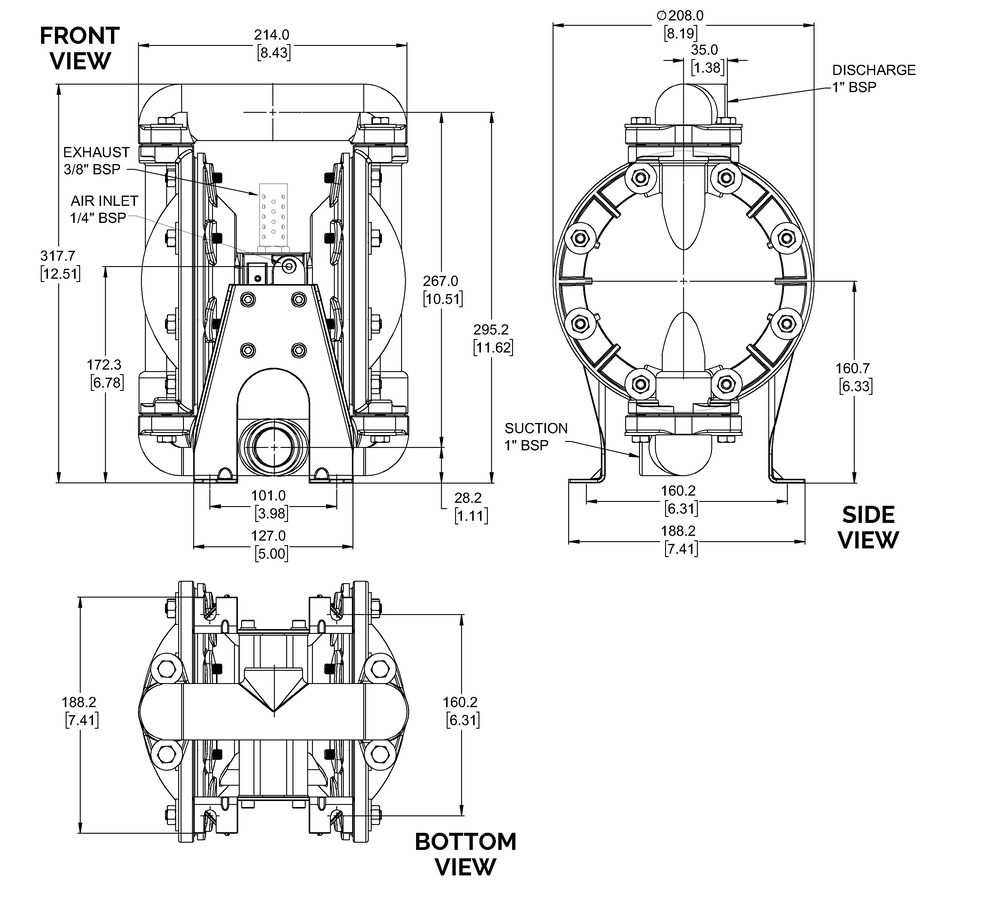

SHIPPING

Maximum Height	380mm(14.96″)
Maximum Width	230mm(9.05″)
Maximum Depth	240mm(9.45″)
Weight: Aluminum	10 Kg

CONSTRUCTION

Wetted Materials	Aluminum
Diaphragm Materials	Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve	Aluminum
Ball Materials	PTFE. Neoprene, 316SS.
Seat Materials	Polypropylene
O-ring Materials	Neoprene, PTFE, EPDM
