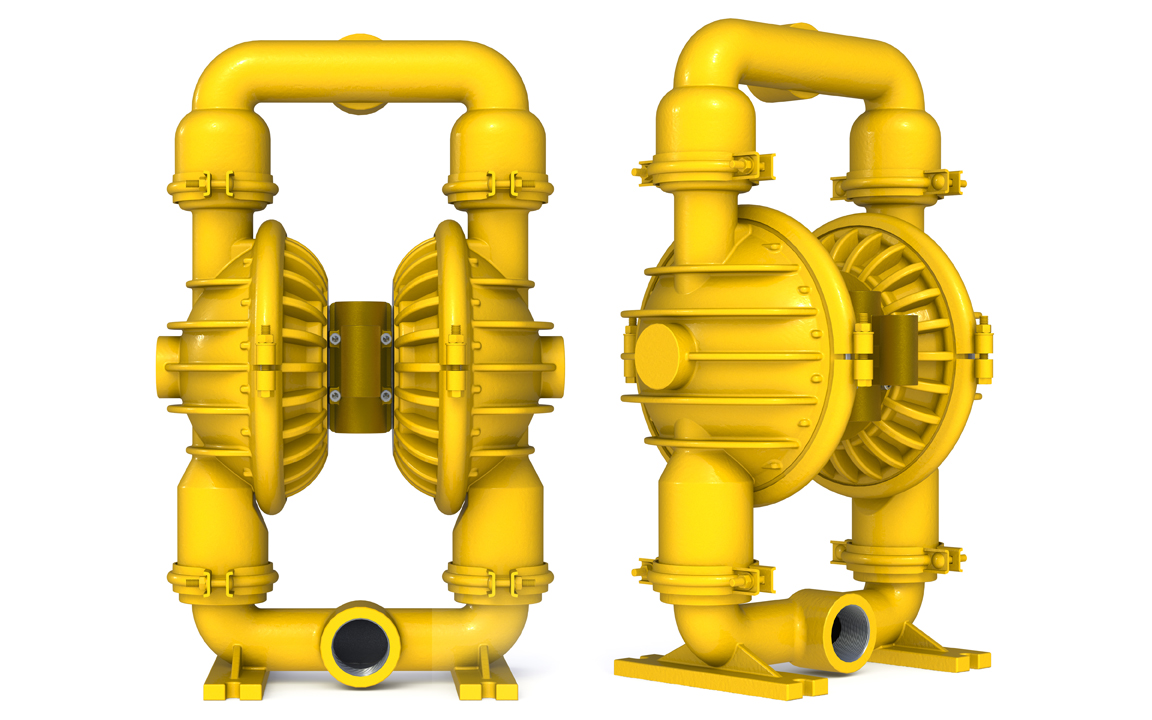

2 INCH ALUMINIUM CLAMPED

AOD 50 M1 AL

TYPICAL INDUSTRIES

Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM’S

AIR VALVE ASSEMBLY OPTIONS

SPECIFICATIONS

Suction & Discharge Size	2″ X 2″
Standard Porting Location	Centre
Connection Types	BSP / NPT
Air Inlet & Air Exhaust Size	19mm(3/4″) x 19mm (3/4″)
Maximum Flow Rate	681lpm(180gpm)
Maximum Air Supply Pressure	100 psi (6.9 bar)
Displacement Per Stroke	2.6l (0.69 gal)
Maximum Particle Size	6.4mm( 1/4 “)
Suction Dry	6.9m(22.7′)
Suction Wet	9.0m(29.5′)

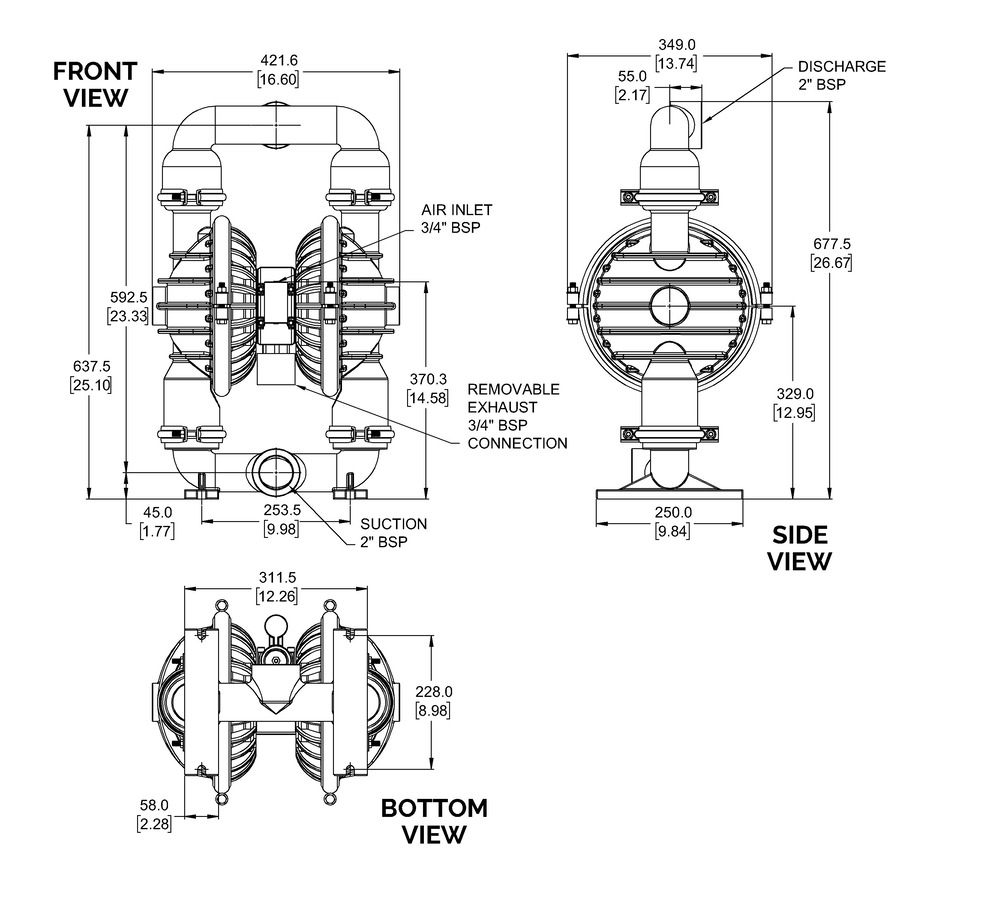

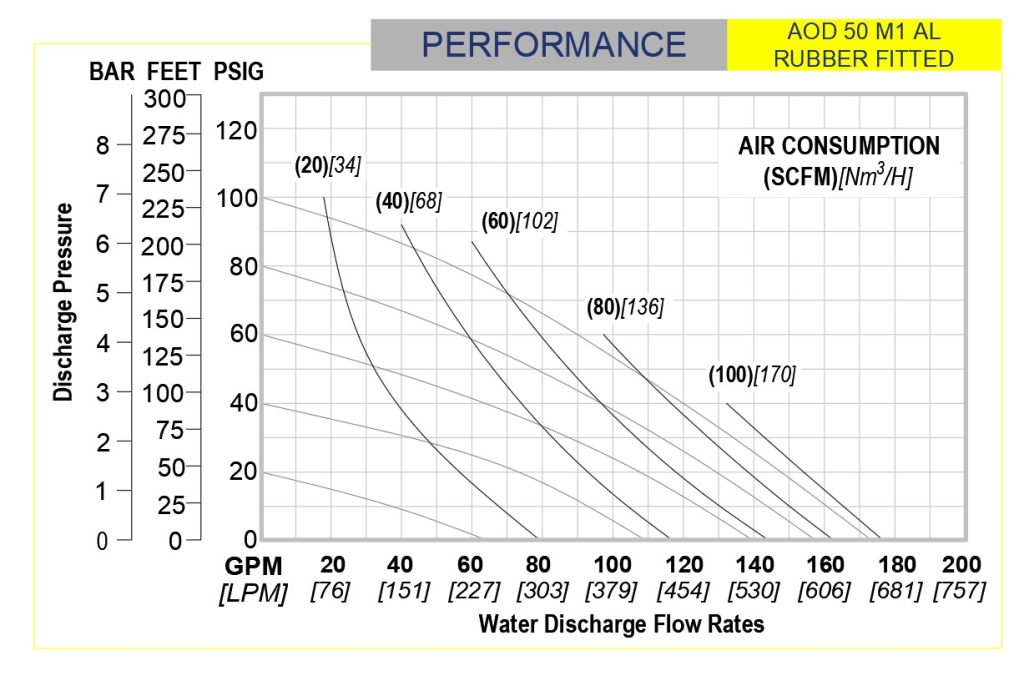

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

SPECIFICATIONS

Suction & Discharge Size	2″ X 2″
Standard Porting Location	Centre
Connection Types	BSP / NPT
Air Inlet & Air Exhaust Size	19mm(3/4″) x 19mm (3/4″)
Maximum Flow Rate	681lpm(180gpm)
Maximum Air Supply Pressure	100 psi (6.9 bar)
Displacement Per Stroke	2.6l (0.69 gal)
Maximum Particle Size	6.4mm( 1/4 “)
Suction Dry	6.9m(22.7′)
Suction Wet	9.0m(29.5′)

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

CONSTRUCTION

Wetted Materials	Aluminum
Diaphragm Materials	Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve	Brass
Ball Materials	PTFE. Neoprene, 316SS.
Seat Materials	Polypropylene
O-ring Materials	Neoprene, PTFE, EPDM

Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™

SHIPPING

Maximum Height	740mm(29.13″)
Maximum Width	370mm(14.56″)
Maximum Depth	440mm(17.32″)
Weight: Aluminum	35.3 kg

CONSTRUCTION

Wetted Materials	Aluminum
Diaphragm Materials	Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve	Brass
Ball Materials	PTFE. Neoprene, 316SS.
Seat Materials	Polypropylene
O-ring Materials	Neoprene, PTFE, EPDM
