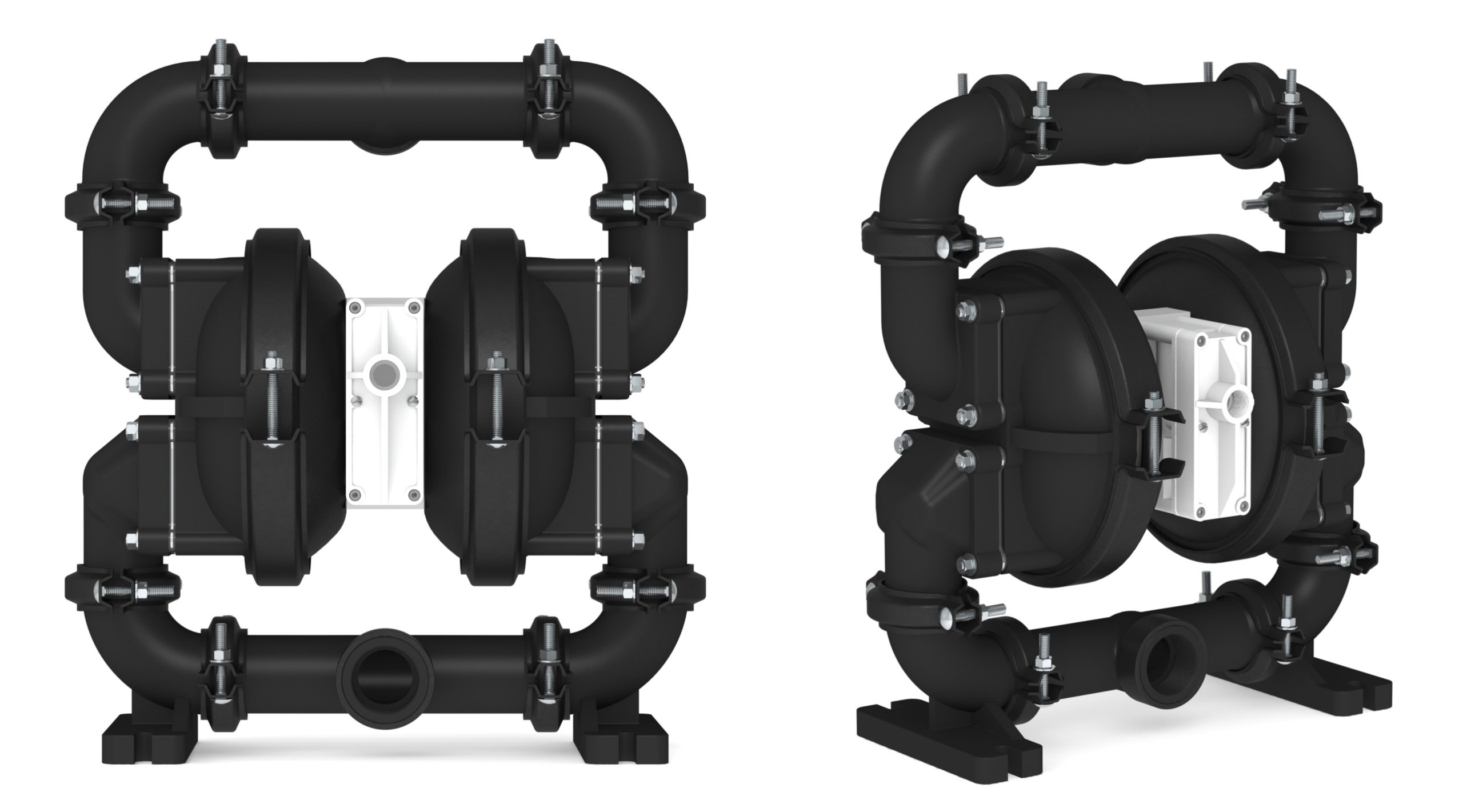

2 INCH POLYPROPYLENE CLAMPED

P 50 FV PP

TYPICAL INDUSTRIES

Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM’S

AIR VALVE ASSEMBLY OPTIONS

SPECIFICATIONS

Suction & Discharge Size	2″ X 2″
Standard Porting Location	Centre
Air Inlet & Air Exhaust Size	13mm(1/2″) x 19mm (3/4″)
Maximum Flow Rate	550lpm(145.3 gpm)
Maximum Air Supply Pressure	100 psi (6.8 bar)
Maximum Particle Size	45mm(1.77″)
Suction Dry	4.5m(14.76′)
Suction Wet	6m(19.68′)

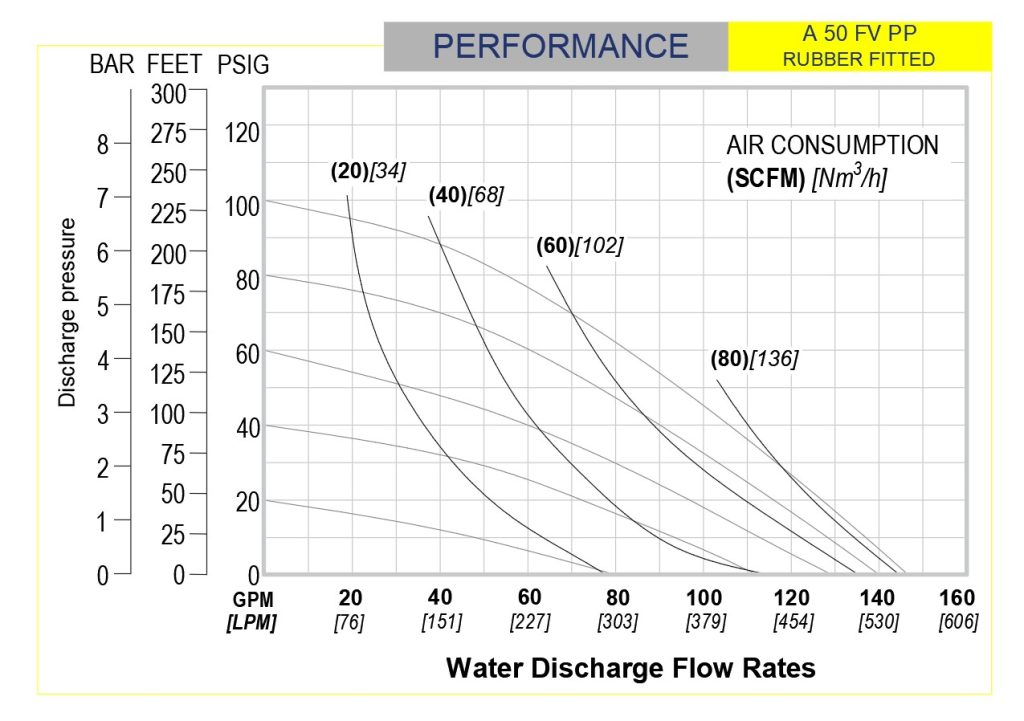

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

SPECIFICATIONS

Suction & Discharge Size	2″ X 2″
Standard Porting Location	Centre
Air Inlet & Air Exhaust Size	13mm(1/2″) x 19mm (3/4″)
Maximum Flow Rate	550lpm(145.3 gpm)
Maximum Air Supply Pressure	100 psi (6.8 bar)
Maximum Particle Size	45mm(1.77″)
Suction Dry	4.5m(14.76′)
Suction Wet	6m(19.68′)

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

CONSTRUCTION

Wetted Materials	Glass Filled Polypropylene
Diaphragm Materials	Neoprene
Air Valve	Glass Filled Polypropylene
Flap Materials	Neoprene
Seat Materials	Stainless Steel
O-ring Materials	Neoprene

Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™

SHIPPING

Maximum Height	630mm(24.80″)
Maximum Width	360mm(14.17″)
Maximum Depth	570mm(22.44″)
Weight: Polypropylene	42 kg

CONSTRUCTION

Wetted Materials	Glass Filled Polypropylene
Diaphragm Materials	Neoprene
Air Valve	Glass Filled Polypropylene
Flap Materials	Neoprene
Seat Materials	Stainless Steel
O-ring Materials	Neoprene
