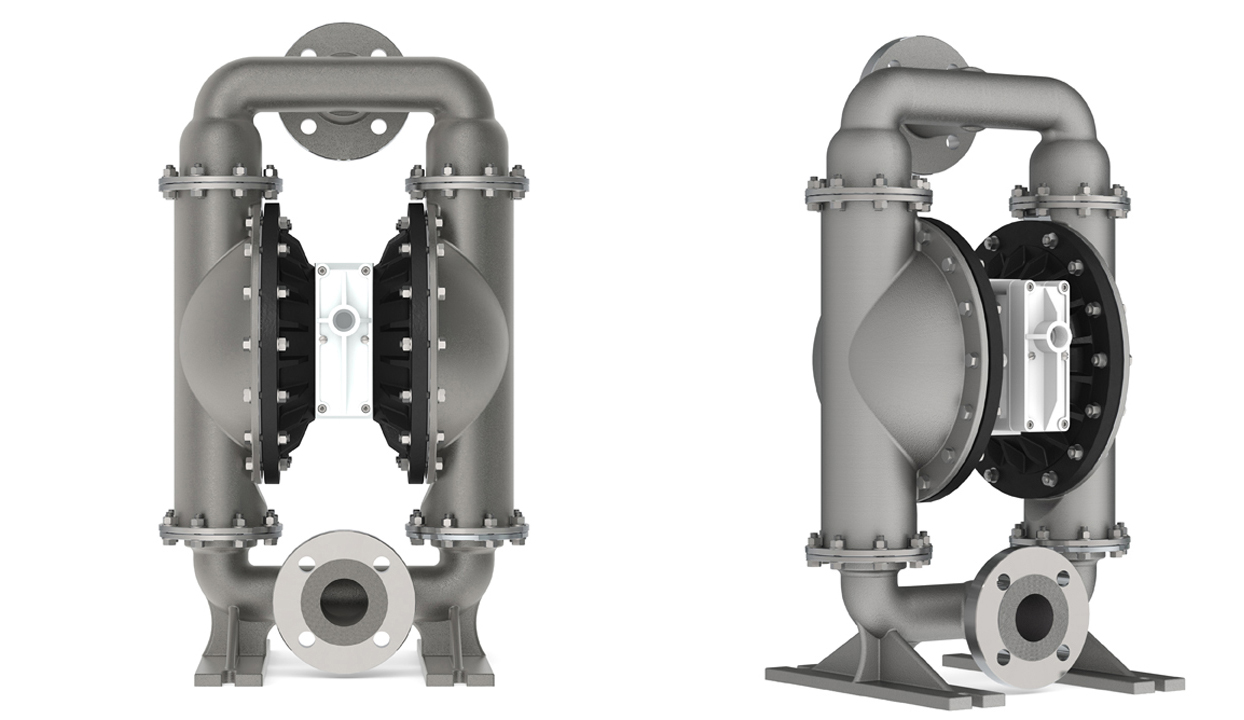

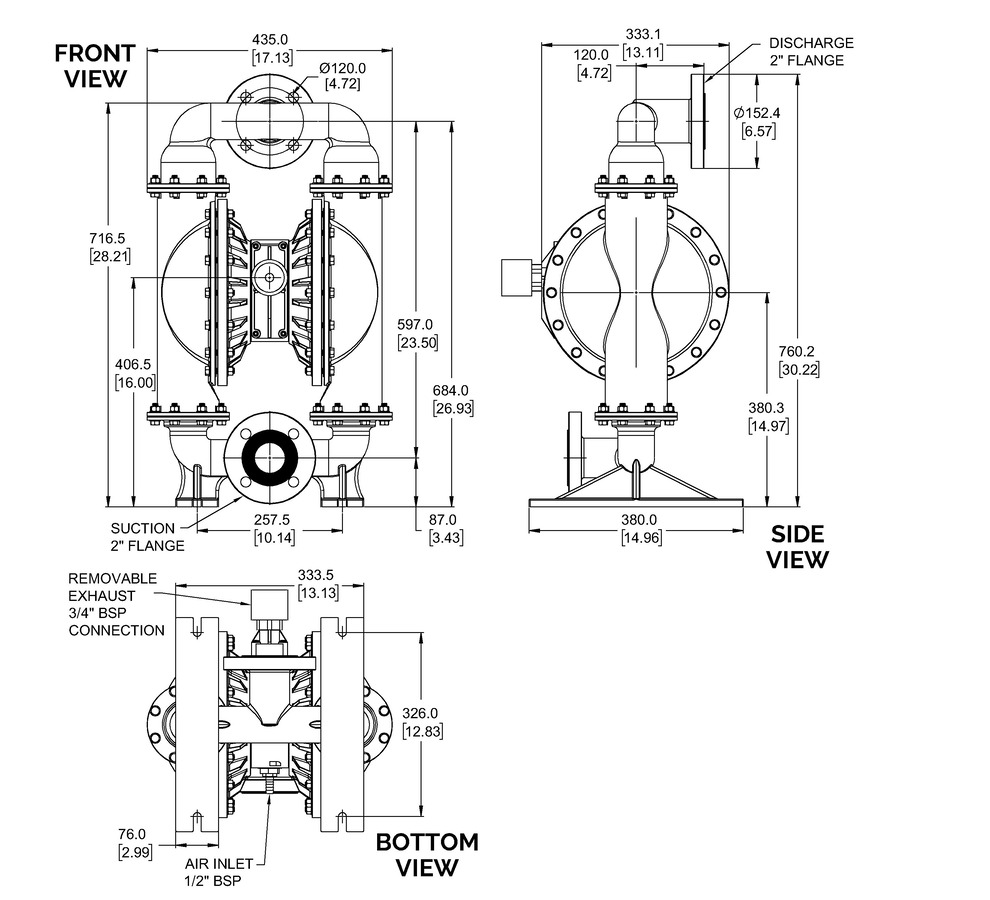

2 INCH STAINLESS STEEL BOLTED

AOD 500 PF SS

TYPICAL INDUSTRIES

Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM’S

AIR VALVE ASSEMBLY OPTIONS

SPECIFICATIONS

Suction & Discharge Size	2″ X 2″
Standard Porting Location	Centre
Connection Types	BSP / NPT
Air Inlet & Air Exhaust Size	13mm(1/2″) x 19mm (3/4″)
Maximum Flow Rate	685lpm(181gpm)
Maximum Air Supply Pressure	120 psi (8.3 bar)
Displacement Per Stroke	2.7l (0.71 gal)
Maximum Particle Size	6.4mm( 1/4 “)
Suction Dry	7.1m(23.3′)
Suction Wet	8.6m(28.4′)

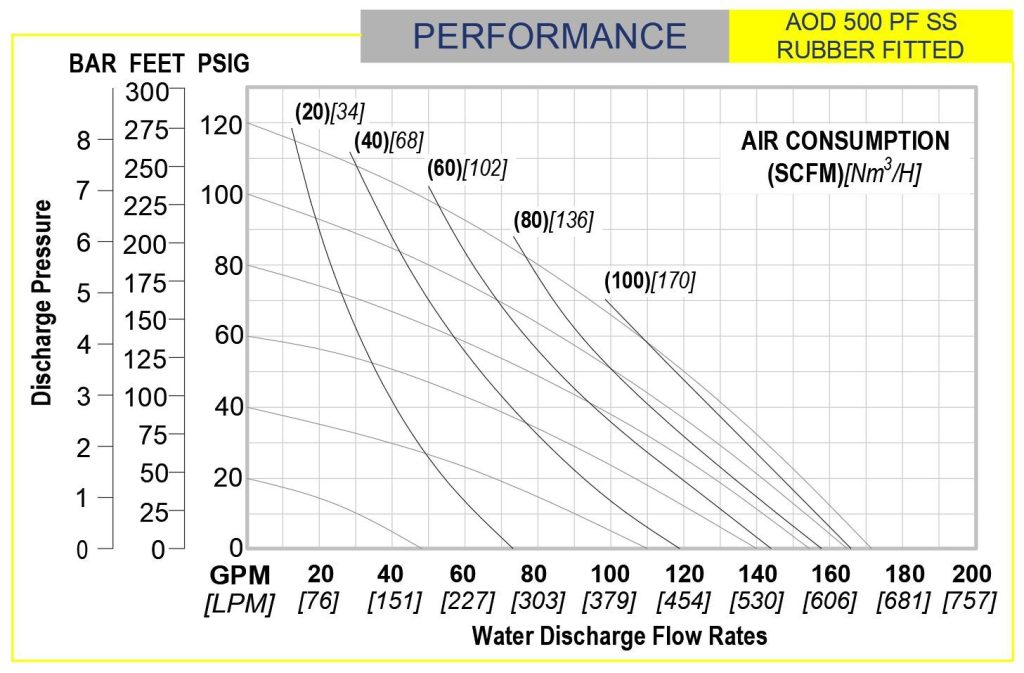

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

SPECIFICATIONS

Suction & Discharge Size	2″ X 2″
Standard Porting Location	Centre
Connection Types	BSP / NPT
Air Inlet & Air Exhaust Size	13mm(1/2″) x 19mm (3/4″)
Maximum Flow Rate	685lpm(181gpm)
Maximum Air Supply Pressure	120 psi (8.3 bar)
Displacement Per Stroke	2.7l (0.71 gal)
Maximum Particle Size	6.4mm( 1/4 “)
Suction Dry	7.1m(23.3′)
Suction Wet	8.6m(28.4′)

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

CONSTRUCTION

Wetted Materials	Stainless Steel SS316
Diaphragm Materials	Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve	Polypropylene
Ball Materials	PTFE. Neoprene, 316SS.
Seat Materials	Polypropylene
O-ring Materials	Neoprene, PTFE, EPDM

Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™

SHIPPING

Maximum Height	540mm(21.26″)
Maximum Width	590mm(23.22″)
Maximum Depth	920mm(36.22″)
Weight: Stainless Steel 316	109 kg

CONSTRUCTION

Wetted Materials	Stainless Steel SS316
Diaphragm Materials	Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve	Polypropylene
Ball Materials	PTFE. Neoprene, 316SS.
Seat Materials	Polypropylene
O-ring Materials	Neoprene, PTFE, EPDM
