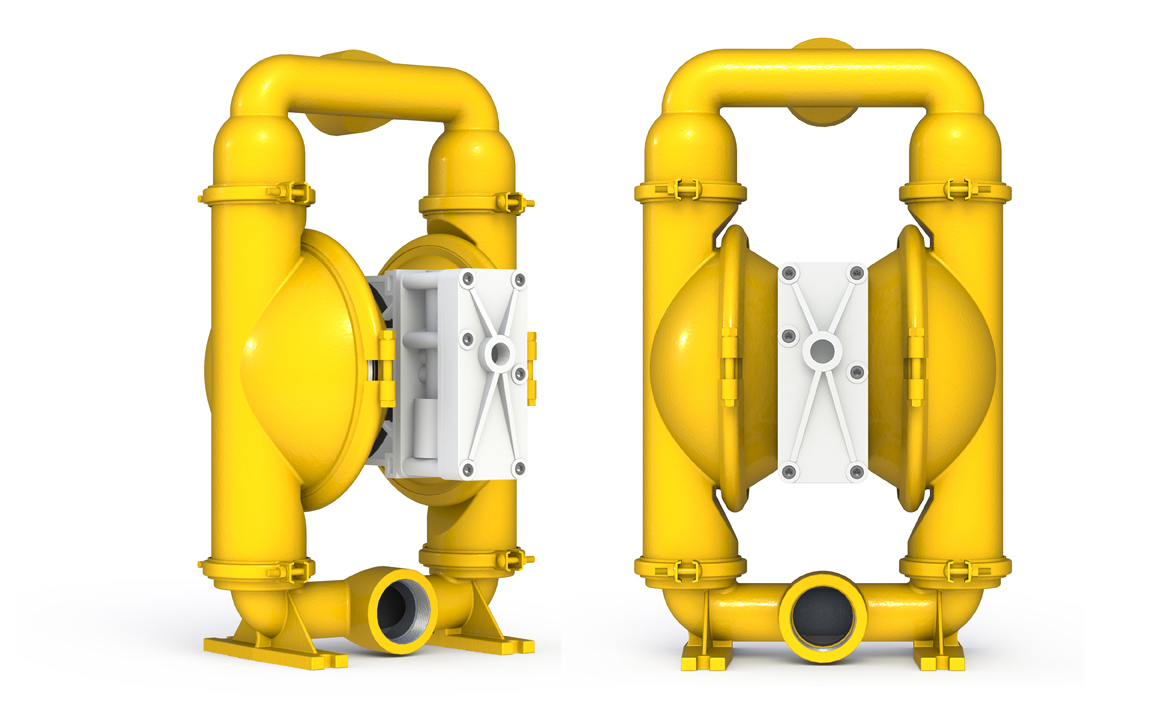

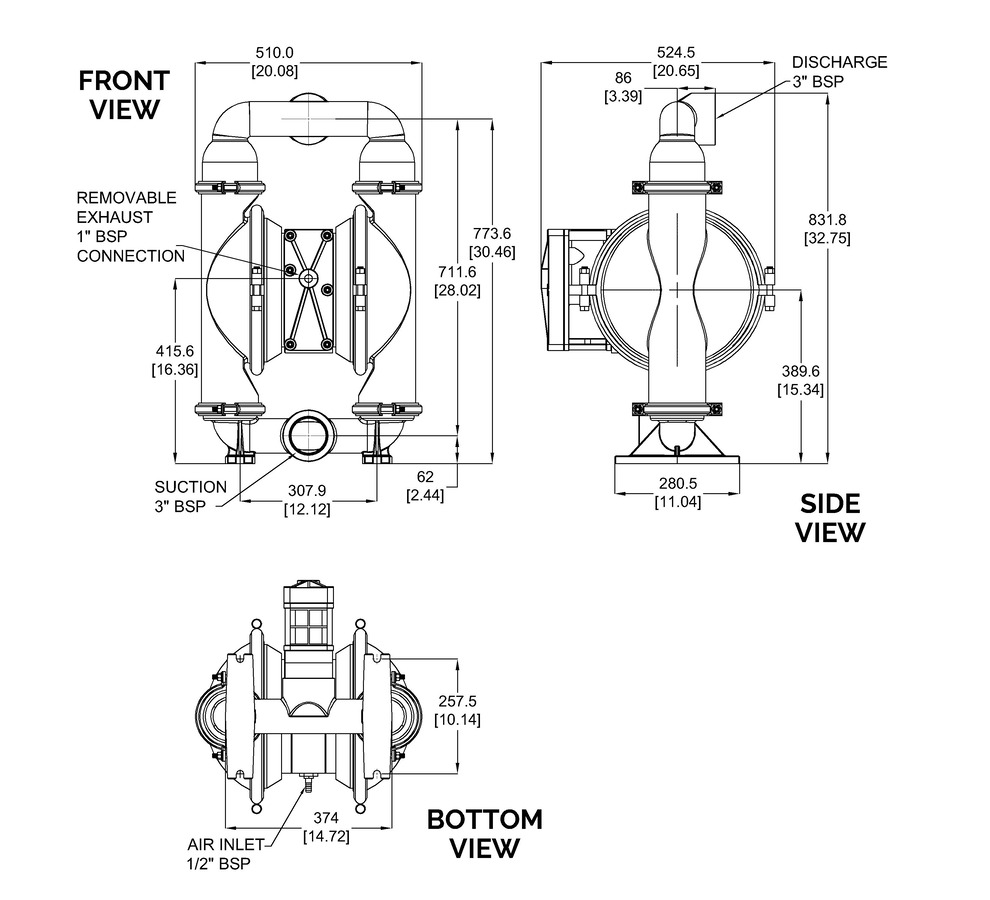

3 INCH DUCTILE IRON CLAMPED

AOD 80 PF CI

TYPICAL INDUSTRIES

Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM’S

AIR VALVE ASSEMBLY OPTIONS

SPECIFICATIONS

Suction & Discharge Size	3″ X 3″
Standard Porting Location	Centre
Connection Types	BSP / NPT
Air Inlet & Air Exhaust Size	13mm(1/2″) X 25mm (1″)
Maximum Flow Rate	900lpm(238gpm)
Maximum Air Supply Pressure	100 psi (6.9 bar)
Displacement Per Stroke	5.2 l (1.38 gal)
Maximum Particle Size	9.5mm(3/8″)
Suction Dry	6.6m(21.6′)
Suction Wet	8.6m(28.4′)

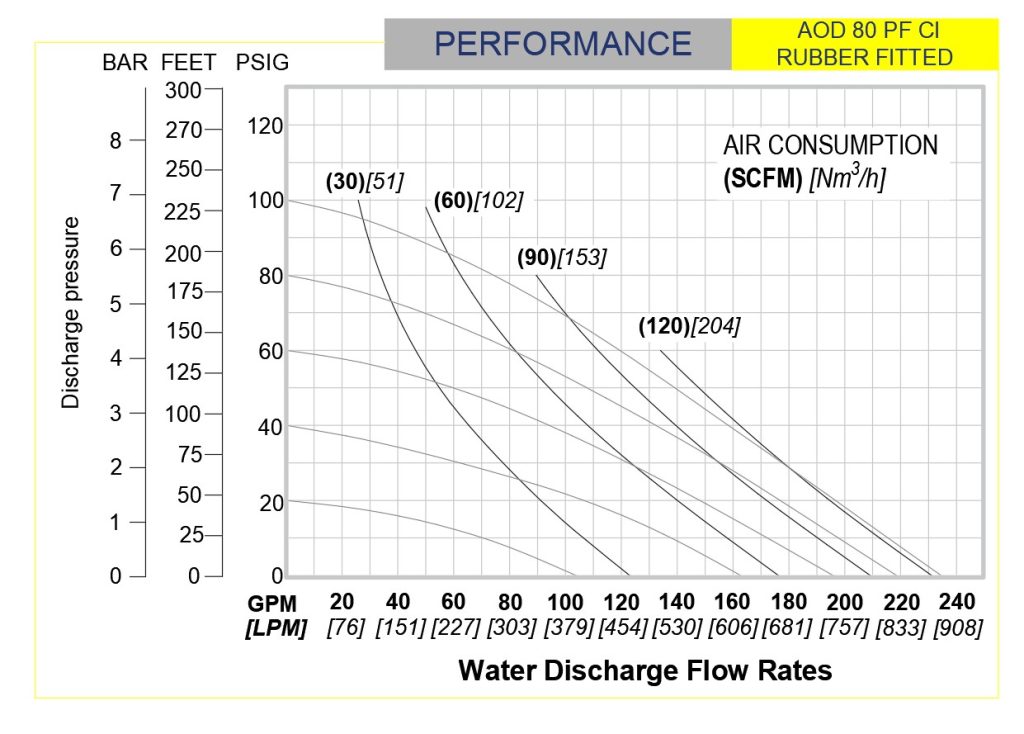

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

SPECIFICATIONS

Suction & Discharge Size	3″ X 3″
Standard Porting Location	Centre
Connection Types	BSP / NPT
Air Inlet & Air Exhaust Size	13mm(1/2″) X 25mm (1″)
Maximum Flow Rate	900lpm(238gpm)
Maximum Air Supply Pressure	100 psi (6.9 bar)
Displacement Per Stroke	5.2 l (1.38 gal)
Maximum Particle Size	9.5mm(3/8″)
Suction Dry	6.6m(21.6′)
Suction Wet	8.6m(28.4′)

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

CONSTRUCTION

Wetted Materials	Ductile Iron
Diaphragm Materials	Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve	Polypropylene
Ball Materials	PTFE. Neoprene, 316SS.
Seat Materials	Polypropylene
O-ring Materials	Neoprene, PTFE, EPDM

Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™

SHIPPING

Maximum Height	640mm(25.19″)
Maximum Width	650mm(25.59″)
Maximum Depth	960mm(37.79″)
Weight: Ductile Iron	135 kg

CONSTRUCTION

Wetted Materials	Ductile Iron
Diaphragm Materials	Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve	Polypropylene
Ball Materials	PTFE. Neoprene, 316SS.
Seat Materials	Polypropylene
O-ring Materials	Neoprene, PTFE, EPDM
