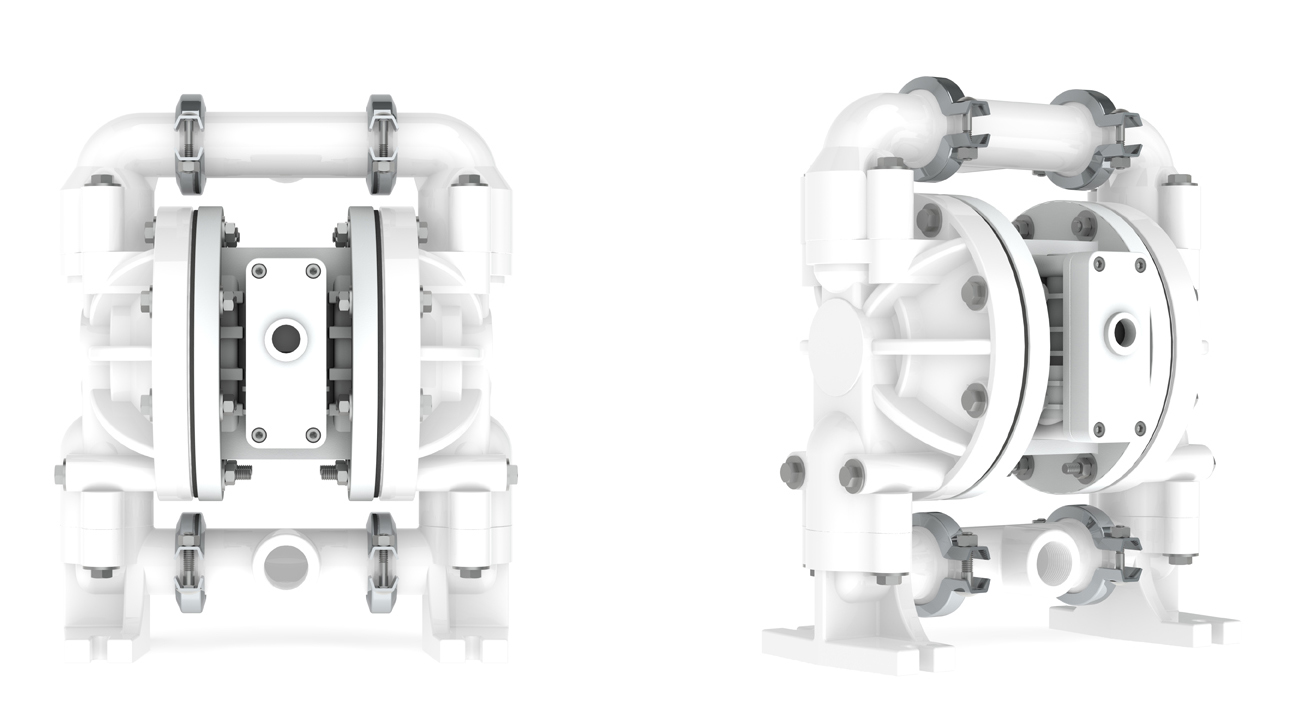

AOD 300 PF PP
TYPICAL INDUSTRIES
Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM’S
AIR VALVE ASSEMBLY OPTIONS
SPECIFICATIONS
| Suction & Discharge Size | 1″ X 1″ |
| Standard Porting Location | Centre |
| Connection Types | ANSI |
| Air Inlet & Air Exhaust Size | 6mm( 1/4 “) X 13mm 1/2” |
| Maximum Flow Rate | 135lpm(36gpm) |
| Maximum Air Supply Pressure | 100 psi (6.9 bar) |
| Displacement Per Stroke | 0.32l (0.086 gal) |
| Maximum Particle Size | 3.17mm(1/8″) |
| Suction Dry | 3.05m(10′) |
| Suction Wet | 4.89m(16′) |

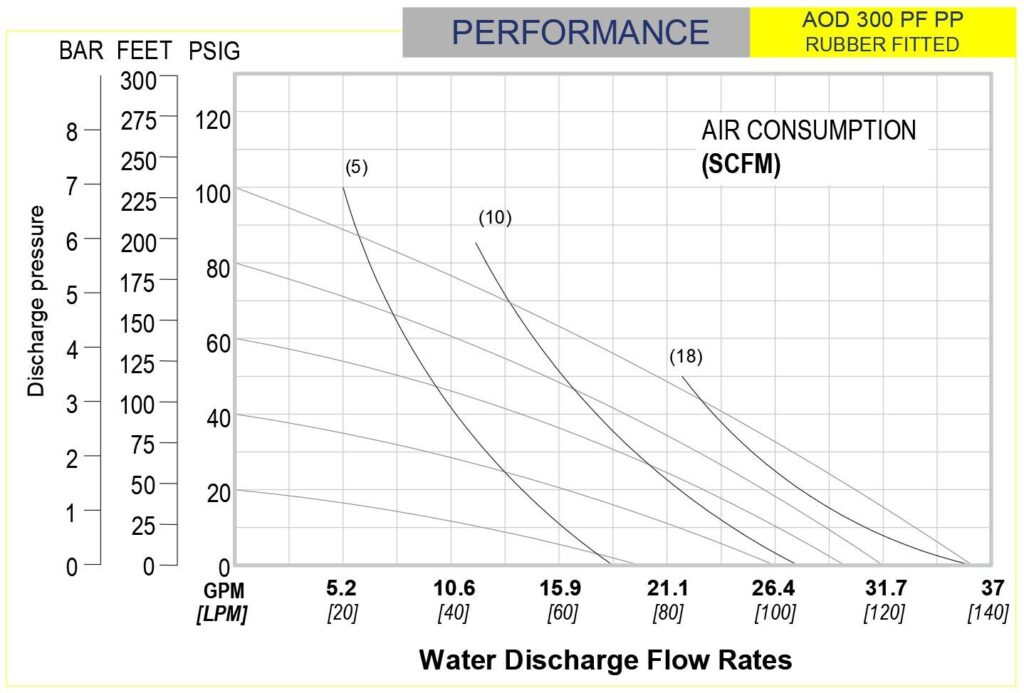

PERFORMANCE CHART
Note: Full Stroke diaphragm allows performance to be equal for all elastormers.
SPECIFICATIONS
| Suction & Discharge Size | 1″ X 1″ |
| Standard Porting Location | Centre |
| Connection Types | ANSI |
| Air Inlet & Air Exhaust Size | 6mm( 1/4 “) X 13mm 1/2” |
| Maximum Flow Rate | 135lpm(36gpm) |
| Maximum Air Supply Pressure | 100 psi (6.9 bar) |
| Displacement Per Stroke | 0.32l (0.086 gal) |
| Maximum Particle Size | 3.17mm(1/8″) |
| Suction Dry | 3.05m(10′) |
| Suction Wet | 4.89m(16′) |
PERFORMANCE CHART
Note: Full Stroke diaphragm allows performance to be equal for all elastormers.
CONSTRUCTION
| Wetted Materials | Polypropylene, PVDF |
| Diaphragm Materials | Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane. |
| Air Valve | Polypropylene |
| Ball Materials | PTFE. Neoprene, 316SS. |
| Seat Materials | Polypropylene |
| O-ring Materials | Neoprene, PTFE, EPDM |
Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™
SHIPPING
| Maximum Height | 440mm(17.32″) |
| Maximum Width | 310mm(12.2″) |
| Maximum Depth | 370mm(14.57″) |
| Weight: Polypropylene | 11 Kg |
| Weight: PVDF | 16 Kg |
CONSTRUCTION
| Wetted Materials | Polypropylene, PVDF |
| Diaphragm Materials | Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane. |
| Air Valve | Polypropylene |
| Ball Materials | PTFE. Neoprene, 316SS. |
| Seat Materials | Polypropylene |
| O-ring Materials | Neoprene, PTFE, EPDM |
Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™
SHIPPING
| Maximum Height | 440mm(17.32″) |
| Maximum Width | 310mm(12.2″) |
| Maximum Depth | 370mm(14.57″) |
| Weight: Polypropylene | 11 Kg |
| Weight: PVDF | 16 Kg |

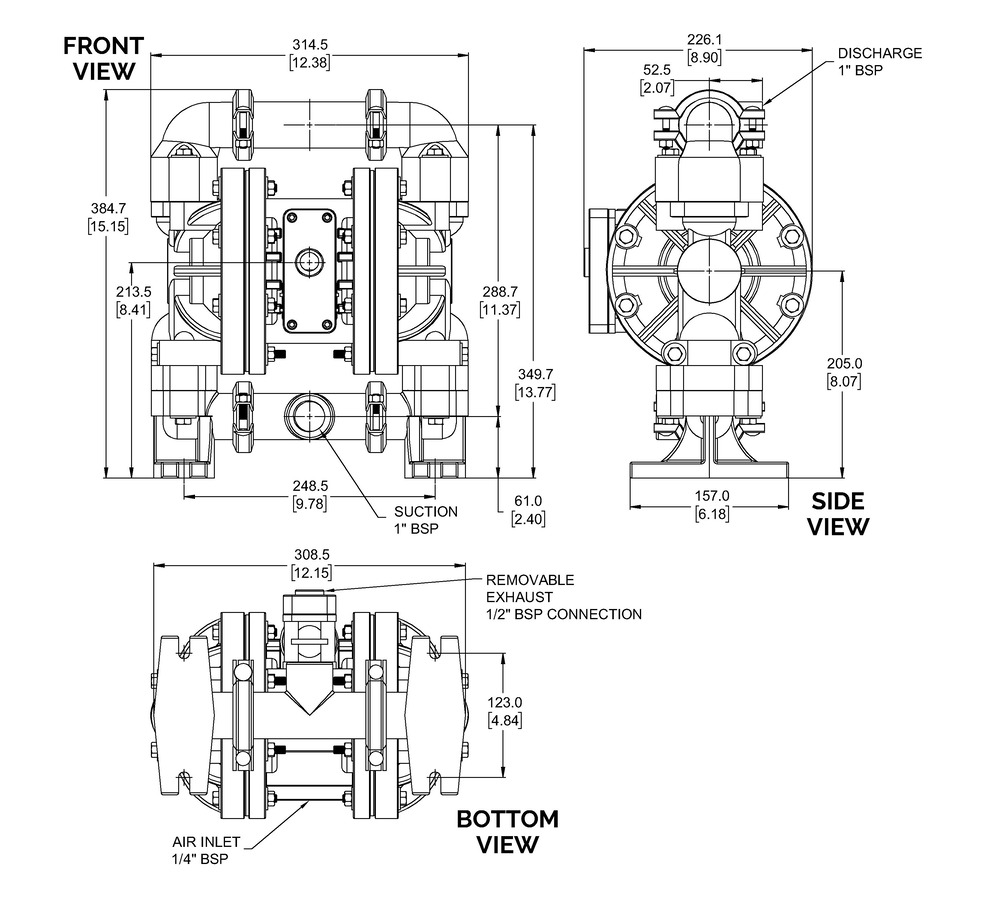

DIMENSIONS
